501594-2211
Affinity Medical Technologies - a Molex company

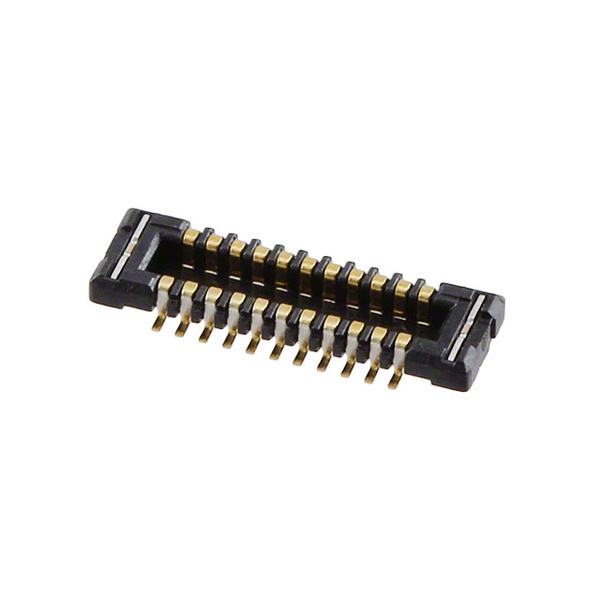

Images are for reference only.
See Product Specifications for product details.
Buy 501594-2211 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 501594-2211 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 501594-2211 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN PLUG 22POS VERT .4MM SL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.77 | $0.66 | $0.638 | $0.616 | ||
Specifications
Data sheet
| Series: | SlimStack 501594 |
|---|---|
| Pitch: | 0.016" (0.40mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 501594-2211-TR250 501594-2211-TR750 5015942211 WM9068TR |
| Number of Rows: | 2 |
| Number of Positions: | 22 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mated Stacking Heights: | 0.9mm |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Above Board: | 0.028" (0.71mm) |
| Features: | Solder Retention |
| Detailed Description: | 22 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Contact Finish Thickness: | 3.90µin (0.099µm) |
| Contact Finish: | Gold |
| Connector Type: | Plug, Outer Shroud Contacts |
| Email: | info@cjjhk.com |
Introduce
We can supply 501594-2211, use the request quote form to request 501594-2211 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 501594-2211.The price and lead time for 501594-2211 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 501594-2211.We look forward to working with you to establish long-term relations of cooperation
