2SB10540P
Panasonic

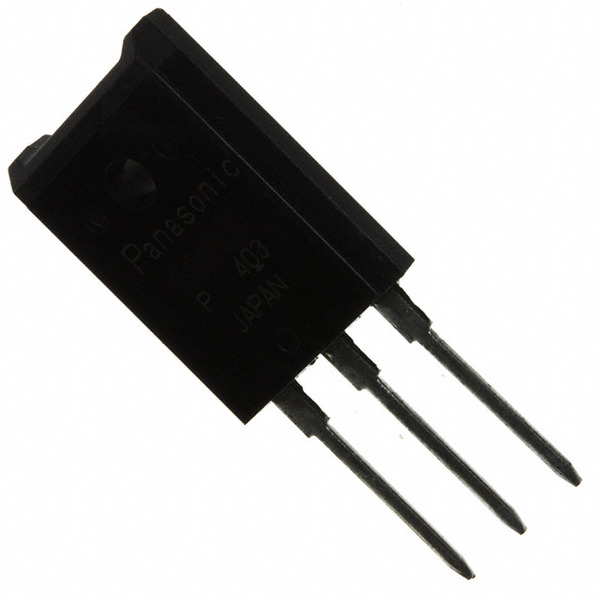

Images are for reference only.
See Product Specifications for product details.
Buy 2SB10540P with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2SB10540P with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2SB10540P |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS PNP 100V 5A TOP-3F |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 100V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 2V @ 300mA, 3A |
| Transistor Type: | PNP |
| Supplier Device Package: | TOP-3F-A1 |
| Series: | - |
| Power - Max: | 3W |
| Packaging: | Bulk |
| Package / Case: | TOP-3F |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Frequency - Transition: | 20MHz |
| Detailed Description: | Bipolar (BJT) Transistor PNP 100V 5A 20MHz 3W Through Hole TOP-3F-A1 |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 1A, 5V |
| Current - Collector Cutoff (Max): | 50µA (ICBO) |
| Current - Collector (Ic) (Max): | 5A |
| Email: | info@cjjhk.com |
Introduce
We can supply 2SB10540P, use the request quote form to request 2SB10540P pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SB10540P.The price and lead time for 2SB10540P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SB10540P.We look forward to working with you to establish long-term relations of cooperation
