2SB1030A
Panasonic
Images are for reference only.
See Product Specifications for product details.
Buy 2SB1030A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2SB1030A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2SB1030A |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS PNP 50V 0.5A NS-B1 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 50V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 600mV @ 30mA, 300mA |
| Transistor Type: | PNP |
| Supplier Device Package: | NS-B1 |
| Series: | - |
| Power - Max: | 300mW |
| Packaging: | Cut Tape (CT) |

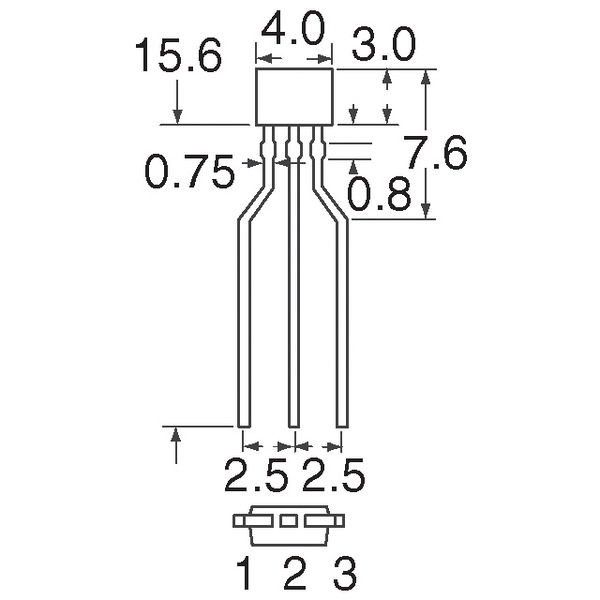

| Package / Case: | NS-B1 |
| Other Names: | 2SB1030ACT |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Frequency - Transition: | 120MHz |
| Detailed Description: | Bipolar (BJT) Transistor PNP 50V 500mA 120MHz 300mW Through Hole NS-B1 |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 85 @ 150mA, 10V |
| Current - Collector Cutoff (Max): | 1µA |
| Current - Collector (Ic) (Max): | 500mA |
| Base Part Number: | 2SB1030 |
| Email: | info@cjjhk.com |
Introduce
We can supply 2SB1030A, use the request quote form to request 2SB1030A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SB1030A.The price and lead time for 2SB1030A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SB1030A.We look forward to working with you to establish long-term relations of cooperation
