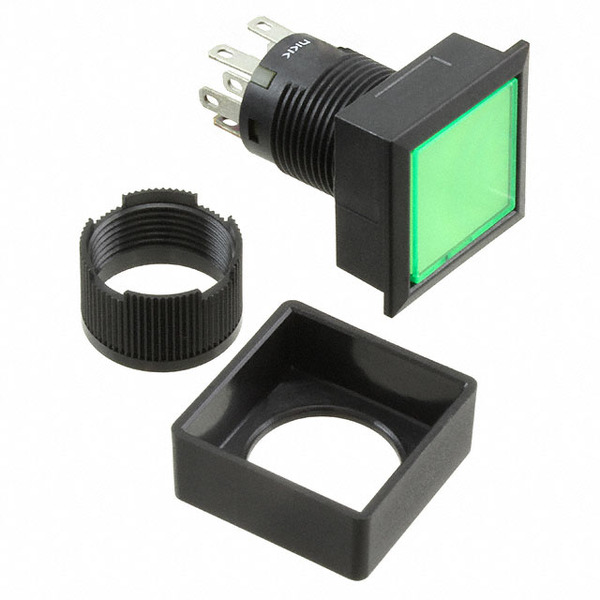

YB226CWSKW01-5F24-FB
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy YB226CWSKW01-5F24-FB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy YB226CWSKW01-5F24-FB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | YB226CWSKW01-5F24-FB |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON DPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $28.14 | $27.738 | $27.336 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $25.326 | $24.924 | $22.11 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard, Illuminated |
| Termination Style: | Solder, Quick Connect - 0.110" (2.8mm) |
| Switch Function: | On-On |
| Series: | YB2 |
| Panel Cutout Dimensions: | Square - 21.00mm² |
| Packaging: | Bulk |
| Other Names: | 360-2660 YB226CWSKW015F24FB |
| Operating Temperature: | -25°C ~ 50°C |
| Mounting Type: | Panel Mount, Front |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 200,000 Cycles |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP65 - Dust Tight, Water Resistant |
| Illumination Voltage (Nominal): | 24 VDC |
| Illumination Type, Color: | LED, Green |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 100,000 Cycles |
| Detailed Description: | Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front |
| Current Rating: | 3A (AC/DC) |
| Color - Actuator/Cap: | Green (White Filter/Diffuser) |
| Circuit: | DPDT |
| Actuator Type: | Square, Button, Flush |
| Email: | info@cjjhk.com |
Introduce
We can supply YB226CWSKW01-5F24-FB, use the request quote form to request YB226CWSKW01-5F24-FB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number YB226CWSKW01-5F24-FB.The price and lead time for YB226CWSKW01-5F24-FB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# YB226CWSKW01-5F24-FB.We look forward to working with you to establish long-term relations of cooperation
