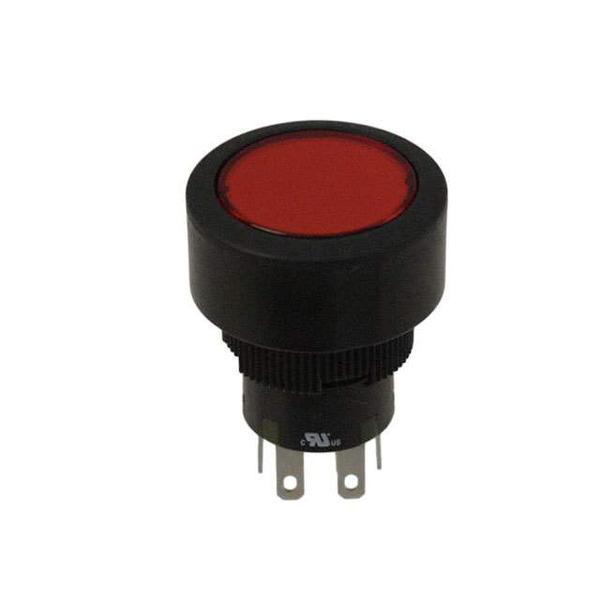

YB226CWCKW01-5C-CB
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy YB226CWCKW01-5C-CB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy YB226CWCKW01-5C-CB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | YB226CWCKW01-5C-CB |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON DPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $25.17 | $24.815 | $24.46 | $22.688 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $22.334 | $19.852 | $19.143 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard, Illuminated |
| Termination Style: | Solder, Quick Connect - 0.110" (2.8mm) |
| Switch Function: | On-On |
| Series: | YB2 |
| Panel Cutout Dimensions: | Circular - 22.00mm Dia |
| Packaging: | Bulk |
| Other Names: | 360-2408 YB226CWCKW01/CUL-5C-CB YB226CWCKW01/CUL-5C-CB-ND YB226CWCKW015CCB |
| Operating Temperature: | -25°C ~ 50°C |
| Mounting Type: | Panel Mount, Front |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 200,000 Cycles |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP65 - Dust Tight, Water Resistant |
| Illumination Voltage (Nominal): | 1.9 VDC |
| Illumination Type, Color: | LED, Red |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 100,000 Cycles |
| Detailed Description: | Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Front |
| Current Rating: | 3A (AC/DC) |
| Color - Actuator/Cap: | Red (White Filter/Diffuser) |
| Circuit: | DPDT |
| Actuator Type: | Round, Button, Flush |
| Email: | info@cjjhk.com |
Introduce
We can supply YB226CWCKW01-5C-CB, use the request quote form to request YB226CWCKW01-5C-CB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number YB226CWCKW01-5C-CB.The price and lead time for YB226CWCKW01-5C-CB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# YB226CWCKW01-5C-CB.We look forward to working with you to establish long-term relations of cooperation
