XZMDKCBDDG45S-9
SunLED

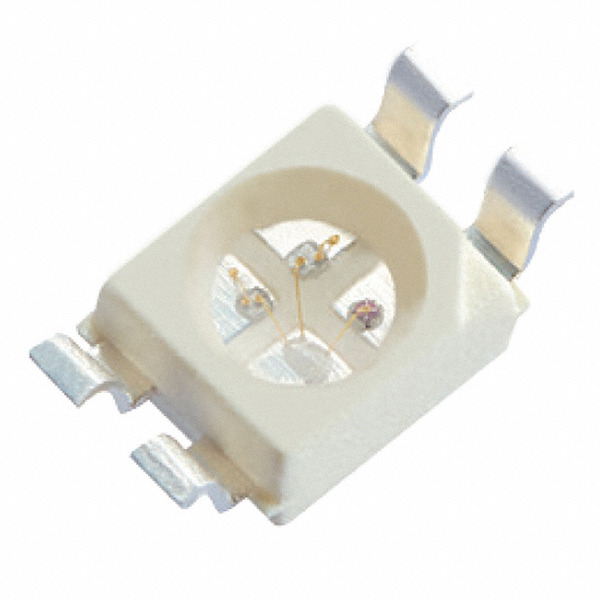

Images are for reference only.
See Product Specifications for product details.
Buy XZMDKCBDDG45S-9 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy XZMDKCBDDG45S-9 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | XZMDKCBDDG45S-9 |
|---|---|
| Manufacturer | SunLED |
| Description | LED Tri-Color 460nm/515nm/645nm 4-Pin PLCC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 6000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.43 | $0.42 | $0.404 | |||
Specifications
Data sheet
| Wavelength - Peak: | 645nm Red, 515nm Green, 460nm Blue |
|---|---|
| Wavelength - Dominant: | 630nm Red, 525nm Green, 465nm Blue |
| Voltage - Forward (Vf) (Typ): | 1.95V Red, 3.3V Green, 3.3V Blue |
| Viewing Angle: | 120° |
| Supplier Device Package: | 4-PLCC |
| Size / Dimension: | 3.20mm L x 2.80mm W |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 4-SMD, Gull Wing |
| Other Names: | 1497-1257-2 XZMDKCBDDG45S-9-ND |
| Mounting Type: | Surface Mount, Bottom Entry |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Millicandela Rating: | 108mcd Red, 497mcd Green, 98mcd Blue |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lens Transparency: | Clear |
| Lens Style/Size: | Round with Flat Top, 2.40mm |
| Lens Color: | Colorless |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 1.90mm |
| Features: | - |
| Detailed Description: | Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 4-SMD, Gull Wing |
| Current - Test: | 20mA Red, 20mA Green, 20mA Blue |
| Configuration: | Common Anode |
| Color: | Red, Green, Blue (RGB) |
| Email: | info@cjjhk.com |
Introduce
We can supply XZMDKCBDDG45S-9, use the request quote form to request XZMDKCBDDG45S-9 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number XZMDKCBDDG45S-9.The price and lead time for XZMDKCBDDG45S-9 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# XZMDKCBDDG45S-9.We look forward to working with you to establish long-term relations of cooperation
