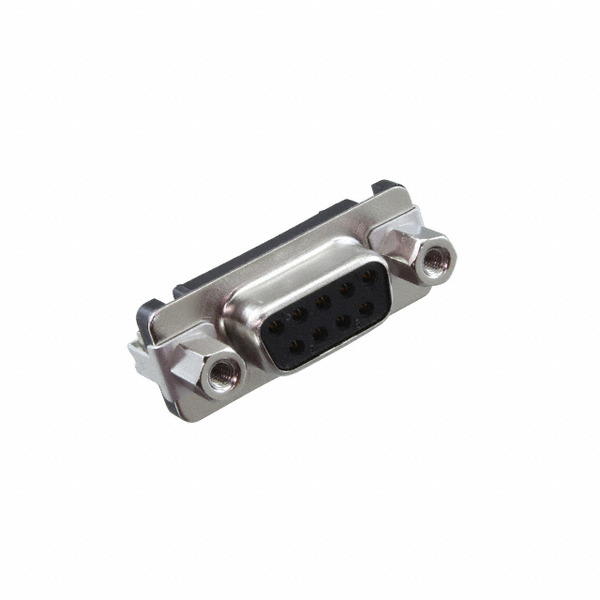

XM3F-0920-112
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XM3F-0920-112 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy XM3F-0920-112 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | XM3F-0920-112 |
|---|---|
| Manufacturer | Omron |
| Description | CONN D-SUB RCPT 9POS VERT SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $9.98 | $9.546 | $8.678 | $8.244 | ||
| 180 pcs | 270 pcs | 540 pcs | 1080 pcs | ||
| $8.027 | $7.159 | $6.725 | $6.267 | ||
Specifications
Data sheet
| Wire Gauge: | - |
|---|---|
| Voltage Rating: | 300V |
| Termination: | Solder |
| Shell Size, Connector Layout: | 1 (DE, E) |
| Shell Material, Finish: | Steel, Tin Plated |
| Series: | XM3F |
| Packaging: | Tray |
| Other Names: | XM3F-0920-112-ND XM3F0920112 Z8767 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions: | 9 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Housing Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature: | Mating Side, Female Screwlock (M2.6) |
| Features: | Board Lock, Shielded |
| Detailed Description: | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating: | 5A |
| Contact Type: | Signal |
| Contact Material: | Phosphor Bronze |
| Contact Form: | - |
| Contact Finish Thickness: | 16.0µin (0.41µm) |
| Contact Finish: | Gold |
| Connector Type: | Receptacle, Female Sockets |
| Connector Style: | D-Sub |
| Color: | Black |
| Backset Spacing: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply XM3F-0920-112, use the request quote form to request XM3F-0920-112 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number XM3F-0920-112.The price and lead time for XM3F-0920-112 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# XM3F-0920-112.We look forward to working with you to establish long-term relations of cooperation
