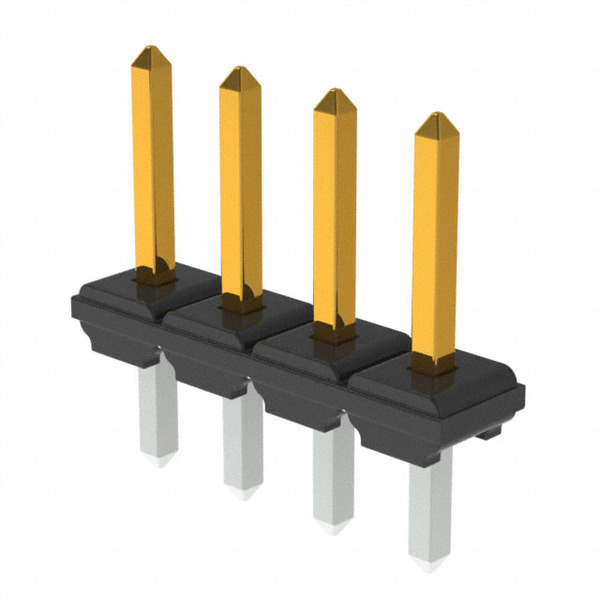

XJ8B-0411
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XJ8B-0411 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy XJ8B-0411 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | XJ8B-0411 |
|---|---|
| Manufacturer | Omron |
| Description | JUMPER PLUG 4POS SING ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.58 | $0.542 | $0.415 | $0.361 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.298 | $0.262 | $0.261 | |||
Specifications
Data sheet
| Voltage Rating: | 300V |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | XJ8 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.339" (8.60mm) |
| Other Names: | XJ8B-0411-ND XJ8B0411 XJ8B0411-ND Z8751 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 4 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height: | 0.059" (1.50mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating: | 2A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass, Nickel |
| Contact Length - Post: | 0.110" (2.79mm) |
| Contact Length - Mating: | 0.169" (4.30mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 5.90µin (0.150µm) |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply XJ8B-0411, use the request quote form to request XJ8B-0411 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number XJ8B-0411.The price and lead time for XJ8B-0411 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# XJ8B-0411.We look forward to working with you to establish long-term relations of cooperation
