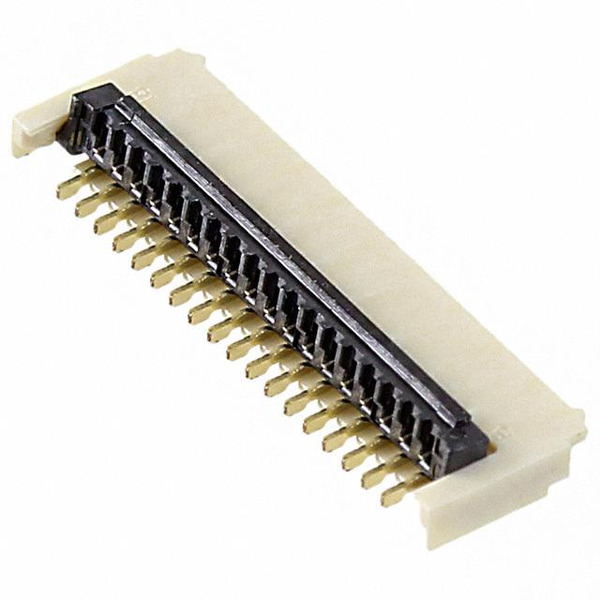

XF2U-1815-3A
Omron
Images are for reference only.
See Product Specifications for product details.
Buy XF2U-1815-3A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy XF2U-1815-3A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | XF2U-1815-3A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC 18POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.76 | $1.596 | $1.498 | $1.433 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.368 | $1.238 | $1.14 | |||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | XF2U |
| Pitch: | 0.020" (0.50mm) |
| Packaging: | Cut Tape (CT) |
| Other Names: | XF2U-1815-3ACT |
| Operating Temperature: | -30°C ~ 85°C |
| Number of Positions: | 18 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 20 |
| Material Flammability Rating: | UL94 V-0 |
| Locking Feature: | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color: | Natural |
| Height Above Board: | 0.035" (0.88mm) |
| Flat Flex Type: | FPC |
| Features: | - |
| FFC, FCB Thickness: | 0.20mm |
| Detailed Description: | 18 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating: | 0.5A |
| Contact Material: | Copper Alloy |
| Contact Finish Thickness: | 5.90µin (0.150µm) |
| Contact Finish: | Gold |
| Connector/Contact Type: | Contacts, Top and Bottom |
| Cable End Type: | Tapered |
| Actuator Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color: | Black |
| Email: | info@cjjhk.com |
Introduce
We can supply XF2U-1815-3A, use the request quote form to request XF2U-1815-3A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number XF2U-1815-3A.The price and lead time for XF2U-1815-3A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# XF2U-1815-3A.We look forward to working with you to establish long-term relations of cooperation
