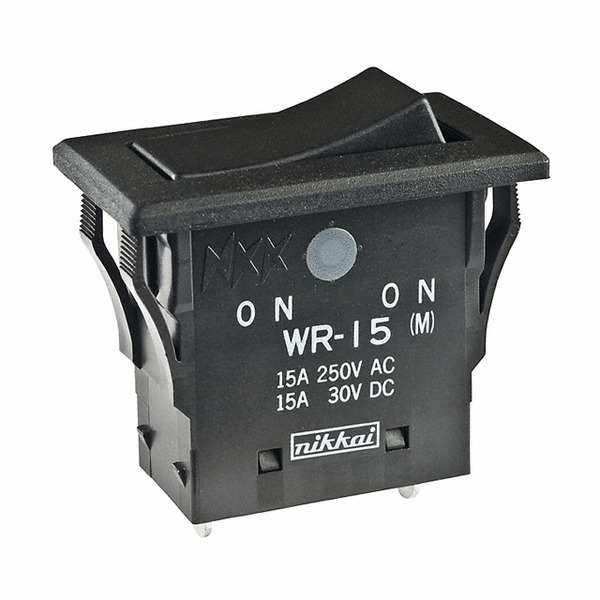

WR15AS
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy WR15AS with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy WR15AS with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | WR15AS |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROCKER SPDT 15A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.20 | $12.78 | $12.425 | $12.07 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $11.715 | $11.36 | $9.94 | $9.408 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Solder Lug |
| Switch Function: | On-Mom |
| Series: | WR |
| Panel Cutout Dimensions: | Rectangular - 34.20mm x 17.20mm |
| Packaging: | Bulk |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 30,000 Cycles |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 10,000 Cycles |
| Detailed Description: | Rocker Switch SPDT 15A (AC/DC) 125V Panel Mount, Snap-In |
| Current Rating: | 15A (AC/DC) |
| Color - Actuator/Cap: | Black |
| Circuit: | SPDT |
| California Prop 65: | Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov. |
| Actuator Type: | Concave (Curved) |
| Actuator Marking: | No Marking |
| Email: | info@cjjhk.com |
Introduce
We can supply WR15AS, use the request quote form to request WR15AS pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number WR15AS.The price and lead time for WR15AS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# WR15AS.We look forward to working with you to establish long-term relations of cooperation
