WB15S-DA
NKK Switches

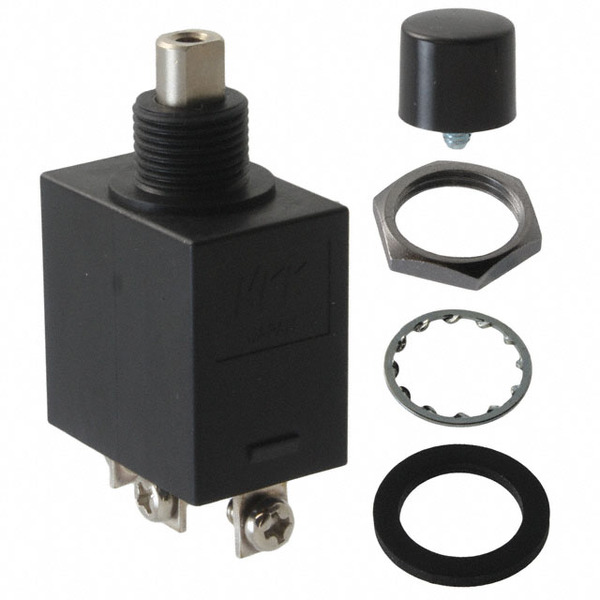

Images are for reference only.
See Product Specifications for product details.
Buy WB15S-DA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy WB15S-DA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | WB15S-DA |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON SPDT 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $18.36 | $18.105 | $17.85 | $16.575 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $16.32 | $14.535 | $14.025 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard |
| Termination Style: | Solder Lug |
| Switch Function: | On-Mom |
| Series: | WB |
| Panel Cutout Dimensions: | Circular - 12.50mm Dia |
| Packaging: | Bulk |
| Other Names: | 360-1683 360-1683-ND 360-2400 WB15S-DA-RO WB15S-DA-RO-ND WB15SDA |
| Operating Temperature: | -30°C ~ 70°C |
| Mounting Type: | Panel Mount, Rear |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 30,000 Cycles |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 15,000 Cycles |
| Detailed Description: | Pushbutton Switch SPDT Standard Panel Mount, Rear |
| Current Rating: | 6A (AC/DC) |
| Color - Actuator/Cap: | Black |
| Circuit: | SPDT |
| Actuator Type: | Round, Button |
| Email: | info@cjjhk.com |
Introduce
We can supply WB15S-DA, use the request quote form to request WB15S-DA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number WB15S-DA.The price and lead time for WB15S-DA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# WB15S-DA.We look forward to working with you to establish long-term relations of cooperation
