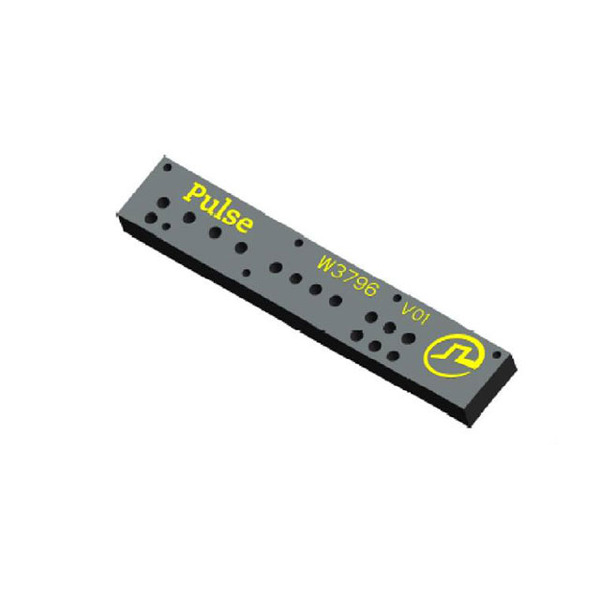

W3796
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy W3796 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy W3796 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | W3796 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 829MHZ/1.575GHZ FLAT BAR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $4.30 | $3.837 | $3.453 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $3.146 | $2.839 | $2.548 | |||
Specifications
Data sheet
| VSWR: | 3 |
|---|---|
| Termination: | Solder |
| Series: | Domino |
| Return Loss: | -6dB |
| Power - Max: | 5W |
| Packaging: | Cut Tape (CT) |
| Other Names: | 553-3657-1 |
| Number of Bands: | 4 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 0.118" (3.00mm) |
| Gain: | 1.5dBi, 2dBi, 5.5dBi, 5dBi |
| Frequency Range: | 698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz |
| Frequency Group: | Wide Band |
| Frequency (Center/Band): | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz |
| Features: | - |
| Detailed Description: | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz GPS, LTE Flat Bar RF Antenna 698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz 1.5dBi, 2dBi, 5.5dBi, 5dBi Solder Surface Mount |
| Applications: | GPS, LTE |
| Antenna Type: | Flat Bar |
| Email: | info@cjjhk.com |
Introduce
We can supply W3796, use the request quote form to request W3796 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number W3796.The price and lead time for W3796 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# W3796.We look forward to working with you to establish long-term relations of cooperation
