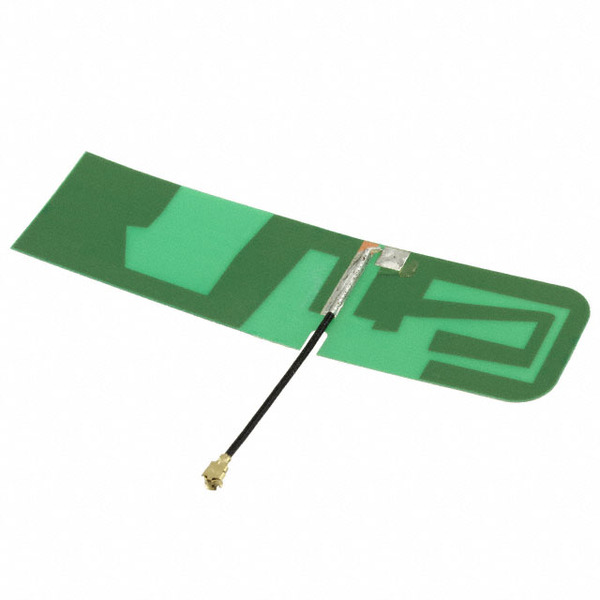

W3501
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy W3501 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy W3501 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | W3501 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 892MHZ/1.9GHZ PCB TRACE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.76 | $4.25 | $3.825 | $3.485 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $3.145 | $2.822 | $2.38 | $2.261 | ||
Specifications
Data sheet
| VSWR: | - |
|---|---|
| Termination: | Connector, IPEX (U.FL) |
| Series: | - |
| Return Loss: | -7dB, -8dB |
| Packaging: | Bulk |
| Other Names: | 553-2581 553-2581-1 553-2581-1-ND |
| Number of Bands: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 0.008" (0.20mm) |
| Gain: | 1.5dBi, 3.75dBi |
| Frequency Range: | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz |
| Frequency Group: | UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band): | 892MHz, 1.9GHz |
| Features: | - |
| Detailed Description: | 892MHz, 1.9GHz GSM PCB Trace RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz 1.5dBi, 3.75dBi Connector, IPEX (U.FL) Surface Mount |
| Applications: | GSM |
| Antenna Type: | PCB Trace |
| Email: | info@cjjhk.com |
Introduce
We can supply W3501, use the request quote form to request W3501 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number W3501.The price and lead time for W3501 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# W3501.We look forward to working with you to establish long-term relations of cooperation
