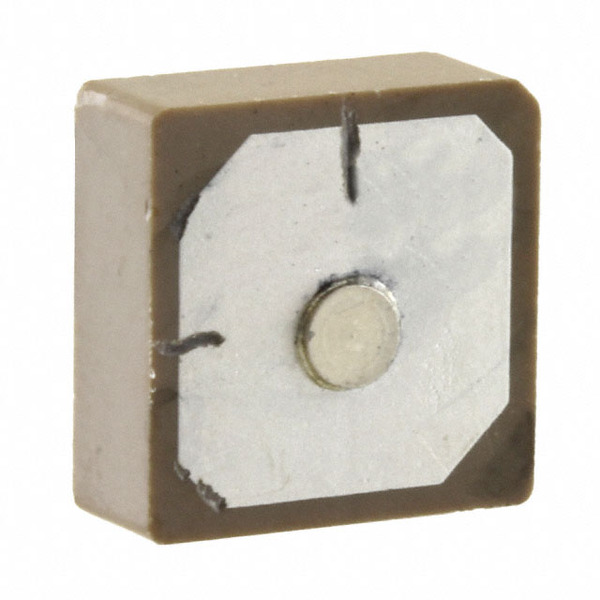

W3216
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy W3216 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy W3216 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | W3216 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 1.575/1.602GHZ CER PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 300 pcs |
|---|---|---|---|---|---|
| $3.02 | $2.70 | $2.43 | $2.214 | $1.998 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $1.793 | $1.512 | $1.436 | $1.382 | ||
Specifications
Data sheet
| VSWR: | 1.4, 2.3 |
|---|---|
| Termination: | Pin |
| Series: | - |
| Return Loss: | - |
| Packaging: | Tray |
| Other Names: | 553-2584 W3216-ND |
| Number of Bands: | 2 |
| Mounting Type: | Adhesive |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 0.218" (5.53mm) |
| Gain: | -2dBi |
| Frequency Range: | 1.575GHz, 1.598GHz ~ 1.606GHz |
| Frequency Group: | UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band): | 1.575GHz, 1.602GHz |
| Features: | - |
| Detailed Description: | 1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz, 1.598GHz ~ 1.606GHz -2dBi Pin Adhesive |
| Applications: | GLONASS, GPS |
| Antenna Type: | Ceramic Patch |
| Email: | info@cjjhk.com |
Introduce
We can supply W3216, use the request quote form to request W3216 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number W3216.The price and lead time for W3216 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# W3216.We look forward to working with you to establish long-term relations of cooperation
