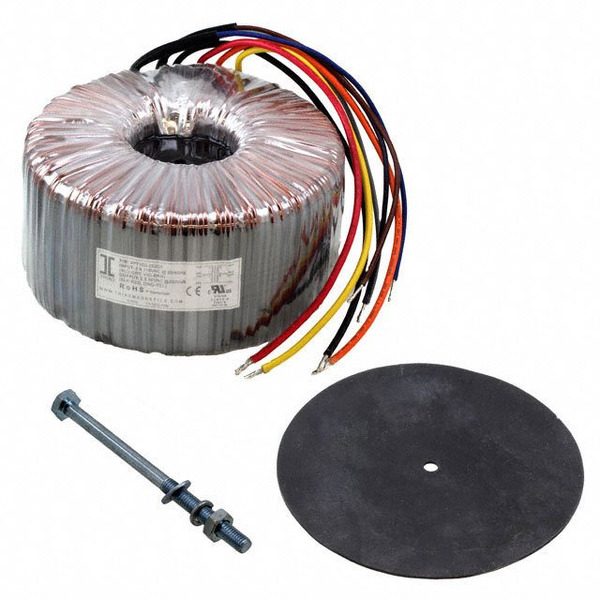

VPT100-25000
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy VPT100-25000 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VPT100-25000 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VPT100-25000 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR TOROIDAL 2500VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $315.28 | $292.76 | $281.50 | |||
Specifications
Data sheet
| Weight: | 43 lbs (19.5kg) |
|---|---|
| Voltage - Secondary (Full Load): | Parallel 50V, Series 100V |
| Voltage - Primary: | 115V, 230V |
| Voltage - Isolation: | 4000Vrms |
| Type: | Toroidal |
| Termination Style: | Wire Leads |
| Size / Dimension: | 208.00mm Dia x 112.00mm W |
| Series: | Chassis Mount: World Series™ |
| Secondary Winding(s): | Dual |
| Primary Winding(s): | Dual |
| Power - Max: | 2500 VA |
| Other Names: | 237-1625 VPT100-25000-ND |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | - |
| Current - Output (Max): | Parallel 50A, Series 25A |
| Center Tap: | No |
| Email: | info@cjjhk.com |
Introduce
We can supply VPT100-25000, use the request quote form to request VPT100-25000 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VPT100-25000.The price and lead time for VPT100-25000 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VPT100-25000.We look forward to working with you to establish long-term relations of cooperation
