VM3-038-1AE
Ohmite

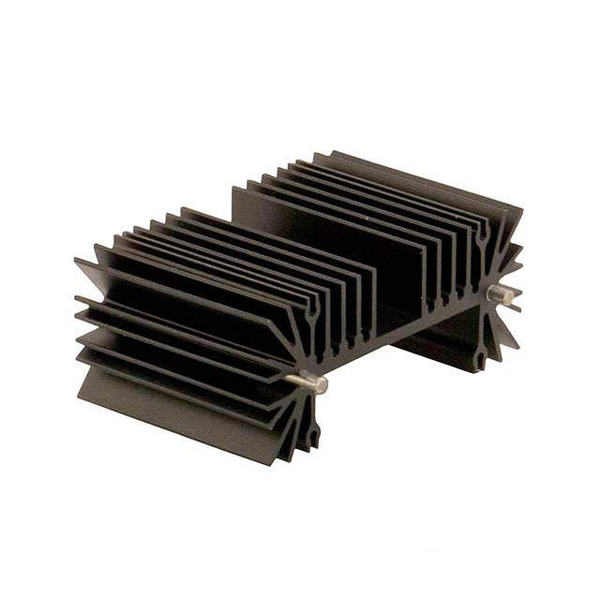

Images are for reference only.
See Product Specifications for product details.
Buy VM3-038-1AE with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VM3-038-1AE with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VM3-038-1AE |
|---|---|
| Manufacturer | Ohmite |
| Description | HEATSINK UNIVERSAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.23 | $5.088 | $4.95 | $4.675 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.40 | $4.125 | $3.988 | $3.575 | ||
Specifications
Data sheet
| Width: | 2.362" (60.00mm) |
|---|---|
| Type: | Board Level |
| Thermal Resistance @ Natural: | - |
| Thermal Resistance @ Forced Air Flow: | 0.60°C/W @ 600 LFM |
| Shape: | Rectangular, Fins |
| Series: | VM |
| Power Dissipation @ Temperature Rise: | 10.0W @ 50°C |
| Package Cooled: | TO-220, TO-247 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Length: | 1.520" (38.61mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.984" (25.00mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-220, TO-247 Aluminum 10.0W @ 50°C Board Level |
| Attachment Method: | Solderable Feet |
| Email: | info@cjjhk.com |
Introduce
We can supply VM3-038-1AE, use the request quote form to request VM3-038-1AE pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VM3-038-1AE.The price and lead time for VM3-038-1AE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VM3-038-1AE.We look forward to working with you to establish long-term relations of cooperation
