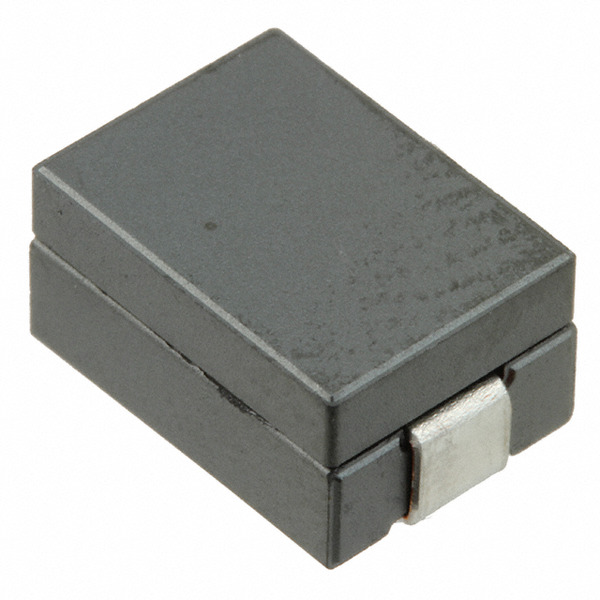

VLB10050HT-R20M
TDK Corporation
Images are for reference only.
See Product Specifications for product details.
Buy VLB10050HT-R20M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VLB10050HT-R20M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VLB10050HT-R20M |
|---|---|
| Manufacturer | TDK |
| Description | Inductor Power Unshielded Wirewound 0.2uH 20% 1MHz Ferrite 31A 0.000371Ohm DCR T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.011 | $1.816 | $1.638 | $1.602 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.362" L x 0.264" W (9.20mm x 6.70mm) |
| Shielding: | Unshielded |
| Series: | VLB |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 445-17108-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 1MHz |
| Inductance: | 200nH |
| Height - Seated (Max): | 0.197" (5.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 200nH Unshielded Wirewound Inductor 31A 0.35 mOhm Max Nonstandard |
| DC Resistance (DCR): | 0.35 mOhm Max |
| Current Rating: | 31A |
| Current - Saturation: | 37A |
| Email: | info@cjjhk.com |
Introduce
We can supply VLB10050HT-R20M, use the request quote form to request VLB10050HT-R20M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VLB10050HT-R20M.The price and lead time for VLB10050HT-R20M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VLB10050HT-R20M.We look forward to working with you to establish long-term relations of cooperation
