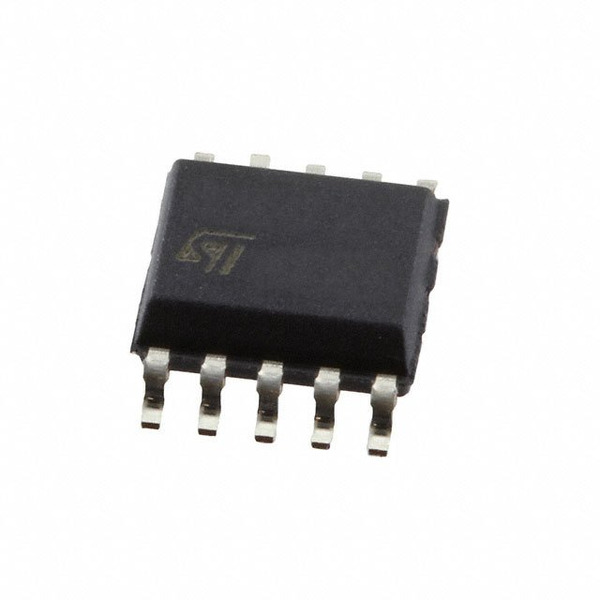

VIPER013XSTR
STMicroelectronics
Images are for reference only.
See Product Specifications for product details.
Buy VIPER013XSTR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VIPER013XSTR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VIPER013XSTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | AC to DC Switching Converter Boost/Buck/Flyback/Off-Line Siwtcher 4.25V 33kHz T/R 10-Pin SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.669 | $0.603 | $0.544 | $0.532 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | 4.5 V ~ 30 V |
|---|---|
| Voltage - Start Up: | 8V |
| Voltage - Breakdown: | 800V |
| Topology: | Buck, Buck-Boost, Flyback |
| Supplier Device Package: | 10-SSO |
| Series: | - |
| Power (Watts): | 7W |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 10-SOP (0.154", 3.90mm Width) |
| Output Isolation: | Either |
| Other Names: | 497-16907-1 |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency - Switching: | 30kHz |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Duty Cycle: | 80% |
| Detailed Description: | Converter Offline Buck, Buck-Boost, Flyback Topology 30kHz 10-SSO |
| Control Features: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply VIPER013XSTR, use the request quote form to request VIPER013XSTR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VIPER013XSTR.The price and lead time for VIPER013XSTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VIPER013XSTR.We look forward to working with you to establish long-term relations of cooperation
