VCUT05E1-SD0-G4-08
Vishay Precision Group

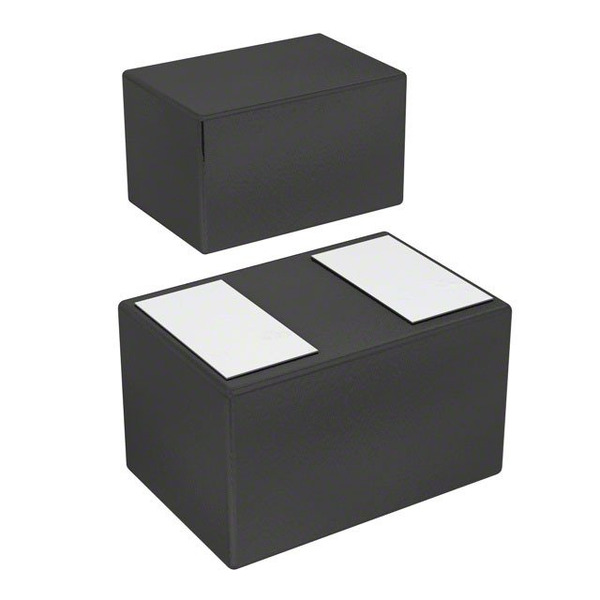

Images are for reference only.
See Product Specifications for product details.
Buy VCUT05E1-SD0-G4-08 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VCUT05E1-SD0-G4-08 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VCUT05E1-SD0-G4-08 |
|---|---|
| Manufacturer | Vishay |
| Description | Single Channel 78 W 5.5 V Bi-Directional ESD Protection Diode CLP0603 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.046 | $0.042 | $0.038 | $0.037 | ||
Specifications
Data sheet
| Voltage - Reverse Standoff (Typ): | 5.5V (Max) |
|---|---|
| Voltage - Clamping (Max) @ Ipp: | 11V (Typ) |
| Voltage - Breakdown (Min): | 6.5V |
| Type: | Zener |
| Supplier Device Package: | CLP0603 |
| Series: | - |
| Power Line Protection: | No |
| Power - Peak Pulse: | 78W |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 0201 (0603 Metric) |
| Other Names: | VCUT05E1-SD0-G4-08GICT |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs): | 6A (8/20µs) |
| Capacitance @ Frequency: | 13pF @ 1MHz |
| Bidirectional Channels: | 1 |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply VCUT05E1-SD0-G4-08, use the request quote form to request VCUT05E1-SD0-G4-08 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VCUT05E1-SD0-G4-08.The price and lead time for VCUT05E1-SD0-G4-08 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VCUT05E1-SD0-G4-08.We look forward to working with you to establish long-term relations of cooperation
