UPS560E3/TR13
Microsemi

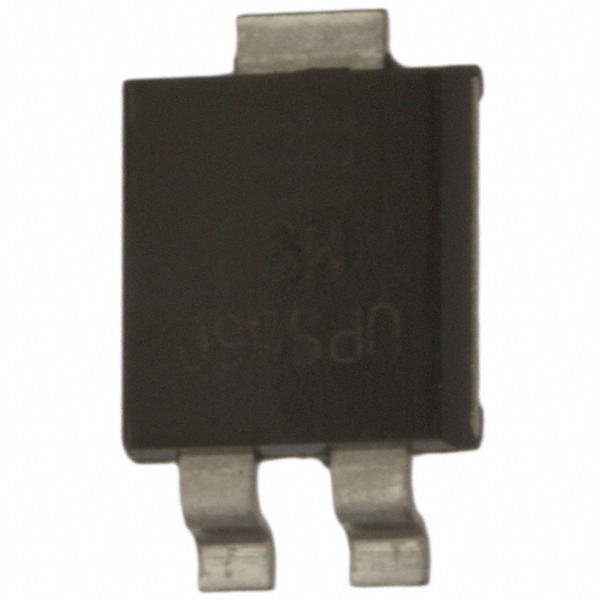

Images are for reference only.
See Product Specifications for product details.
Buy UPS560E3/TR13 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy UPS560E3/TR13 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | UPS560E3/TR13 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE SCHOTTKY 60V 5A POWERMITE3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.25 | $1.106 | $0.874 | $0.678 | $0.535 | |
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 690mV @ 5A |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 60V |
| Supplier Device Package: | Powermite 3 |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Powermite®3 |
| Other Names: | UPS560E3/TR13CT UPS560E3CT UPS560E3CT-ND |
| Operating Temperature - Junction: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 60V 5A Surface Mount Powermite 3 |
| Current - Reverse Leakage @ Vr: | 200µA @ 60V |
| Current - Average Rectified (Io): | 5A |
| Capacitance @ Vr, F: | 150pF @ 4V, 1MHz |
| Base Part Number: | UPS560 |
| Email: | info@cjjhk.com |
Introduce
We can supply UPS560E3/TR13, use the request quote form to request UPS560E3/TR13 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UPS560E3/TR13.The price and lead time for UPS560E3/TR13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UPS560E3/TR13.We look forward to working with you to establish long-term relations of cooperation
