UPJ1K181MHD
Nichicon

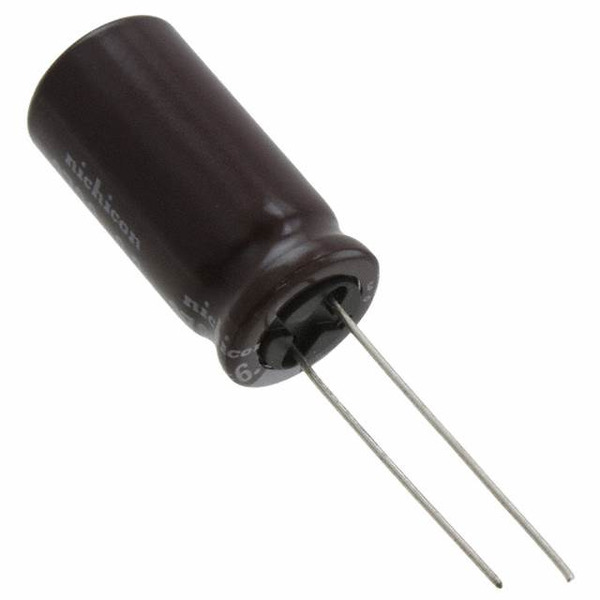

Images are for reference only.
See Product Specifications for product details.
Buy UPJ1K181MHD with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy UPJ1K181MHD with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | UPJ1K181MHD |
|---|---|
| Manufacturer | Nichicon |
| Description | CAP ALUM 180UF 20% 80V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.452 | |||||
Specifications
Data sheet
| Voltage - Rated: | 80V |
|---|---|
| Tolerance: | ±20% |
| Surface Mount Land Size: | - |
| Size / Dimension: | 0.492" Dia (12.50mm) |
| Series: | UPJ |
| Ripple Current @ Low Frequency: | 520mA @ 120Hz |
| Ripple Current @ High Frequency: | 734mA @ 10kHz |
| Ratings: | - |
| Polarization: | Polar |
| Packaging: | Bulk |
| Package / Case: | Radial, Can |
| Operating Temperature: | -55°C ~ 105°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 27 Weeks |
| Lifetime @ Temp.: | 5000 Hrs @ 105°C |
| Lead Spacing: | 0.197" (5.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Impedance: | 130 mOhms |
| Height - Seated (Max): | 1.043" (26.50mm) |
| ESR (Equivalent Series Resistance): | - |
| Detailed Description: | 180µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C |
| Capacitance: | 180µF |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply UPJ1K181MHD, use the request quote form to request UPJ1K181MHD pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UPJ1K181MHD.The price and lead time for UPJ1K181MHD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UPJ1K181MHD.We look forward to working with you to establish long-term relations of cooperation
