UB26KKW016B-JB
NKK Switches

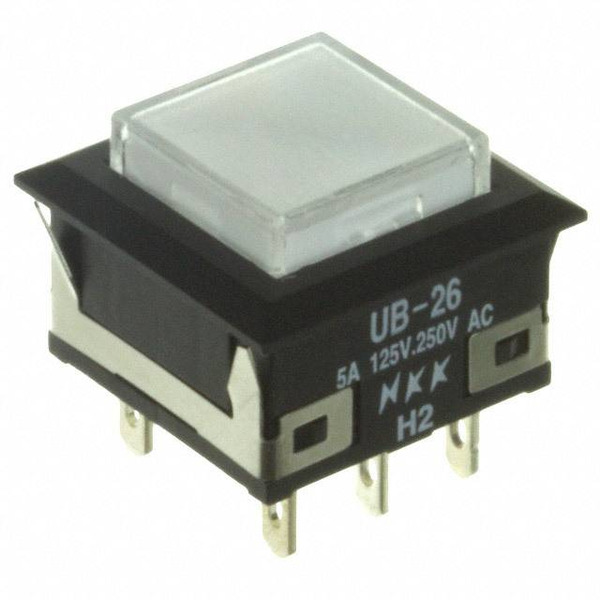

Images are for reference only.
See Product Specifications for product details.
Buy UB26KKW016B-JB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy UB26KKW016B-JB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | UB26KKW016B-JB |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH PUSHBUTTON DPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $20.15 | $19.863 | $19.579 | $18.16 | ||
| 100 pcs | 260 pcs | 500 pcs | |||
| $17.876 | $15.89 | $15.323 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Type: | Standard, Illuminated |
| Termination Style: | Solder Lug |
| Switch Function: | On-On |
| Series: | UB |
| Panel Cutout Dimensions: | Square - 16.20mm² |
| Packaging: | Bulk |
| Other Names: | UB26KKW016B-JB-RO UB26KKW016B-JB-RO-ND UB26KKW016BJB |
| Operating Temperature: | -25°C ~ 50°C |
| Mounting Type: | Panel Mount, Snap-In |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 200,000 Cycles |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | 2.9 VDC |
| Illumination Type, Color: | LED, White |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 10,000 Cycles |
| Detailed Description: | Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In |
| Current Rating: | 5A (AC/DC) |
| Color - Actuator/Cap: | Clear (White Filter/Diffuser) |
| Circuit: | DPDT |
| Actuator Type: | Square, Button |
| Email: | info@cjjhk.com |
Introduce
We can supply UB26KKW016B-JB, use the request quote form to request UB26KKW016B-JB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UB26KKW016B-JB.The price and lead time for UB26KKW016B-JB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UB26KKW016B-JB.We look forward to working with you to establish long-term relations of cooperation
