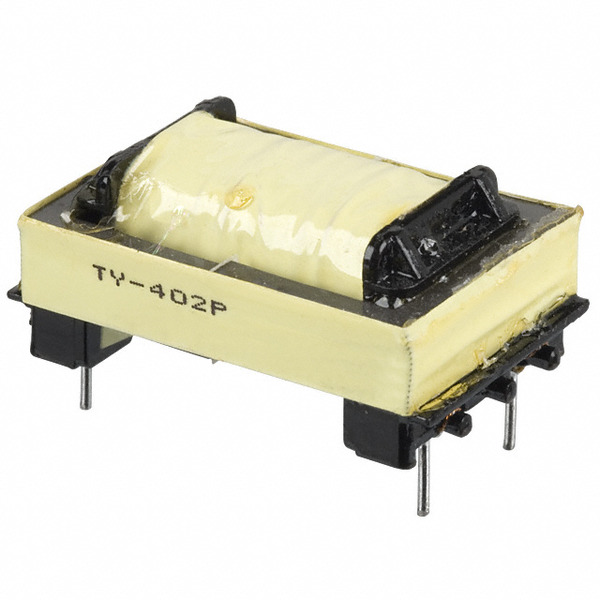

TY-402P
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy TY-402P with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TY-402P with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TY-402P |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | TRANSF 600 OHM 90MA DC TEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.68 | $4.318 | $4.204 | $3.863 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.636 | $3.522 | $3.409 | $3.295 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Isolation: | 1500VAC |
| Turns Ratio - Primary:Secondary: | 1:1.1 |
| Transformer Type: | Data/Voice Coupling |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.815" L x 1.250" W (20.70mm x 31.75mm) |
| Series: | TY |
| Return Loss: | 13dB Typ |
| Power Level: | -45dB ~ 7dB |
| Packaging: | Bulk |
| Other Names: | 10626 237-1135 TY402P |
| Operating Temperature: | - |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | 1.75dB Typ |
| Impedance - Secondary (Ohms): | 600 |
| Impedance - Primary (Ohms): | 600 |
| Height - Seated (Max): | 0.530" (13.46mm) |
| Frequency Response: | ±0.5dB |
| Frequency Range: | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary: | - |
| DC Resistance (DCR) - Primary: | - |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply TY-402P, use the request quote form to request TY-402P pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TY-402P.The price and lead time for TY-402P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TY-402P.We look forward to working with you to establish long-term relations of cooperation
