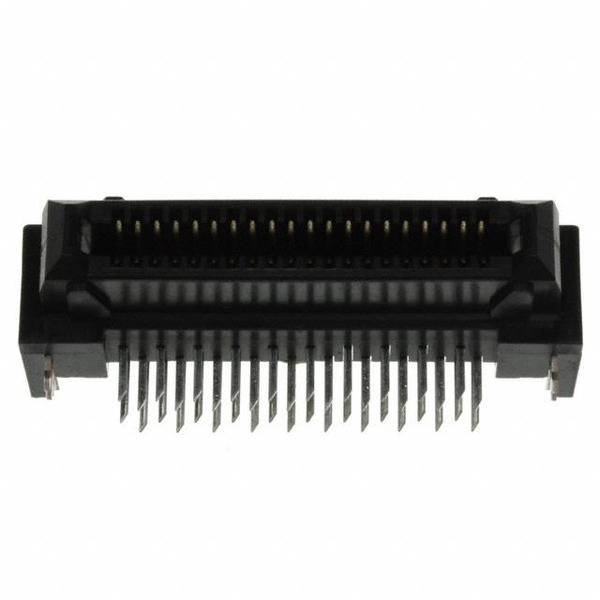

TX24-40R-LT-H1E
JAE Electronics, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy TX24-40R-LT-H1E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TX24-40R-LT-H1E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TX24-40R-LT-H1E |
|---|---|
| Manufacturer | JAE Electronics |
| Description | Pcb to Pcb Through-hole Receptacle; 1.27MM Pitch; 40 Contacts; Right Angle |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.291 | $1.166 | $1.051 | $1.029 | ||
Specifications
Data sheet
| Series: | TX24 |
|---|---|
| Pitch: | 0.050" (1.27mm) |
| Packaging: | Tray |
| Other Names: | 670-1386 TX2440RLTH1E |
| Number of Rows: | 2 |
| Number of Positions: | 40 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Above Board: | 0.354" (9.00mm) |
| Features: | Board Lock |
| Detailed Description: | 40 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold |
| Contact Finish Thickness: | 3.90µin (0.099µm) |
| Contact Finish: | Gold |
| Connector Type: | Receptacle, Outer Shroud Contacts |
| Email: | info@cjjhk.com |
Introduce
We can supply TX24-40R-LT-H1E, use the request quote form to request TX24-40R-LT-H1E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TX24-40R-LT-H1E.The price and lead time for TX24-40R-LT-H1E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TX24-40R-LT-H1E.We look forward to working with you to establish long-term relations of cooperation
