TX16/9.1/4.7-3C94
FERROXCUBE

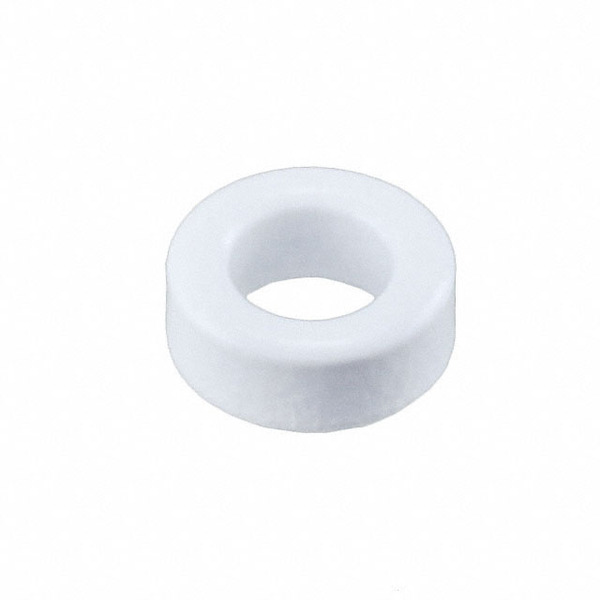

Images are for reference only.
See Product Specifications for product details.
Buy TX16/9.1/4.7-3C94 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TX16/9.1/4.7-3C94 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TX16/9.1/4.7-3C94 |
|---|---|
| Manufacturer | FERROXCUBE |
| Description | FERRITE CORES ROUND |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.75 | $0.637 | $0.546 | $0.489 | $0.432 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.387 | $0.364 | $0.307 | $0.284 | ||
Specifications
Data sheet
| Width: | - |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | TX 16 x 9.1 x 4.7 |
| Series: | * |
| Other Names: | 1779-1510 |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material: | 3C94 |
| Manufacturer Standard Lead Time: | 24 Weeks |
| Length: | - |
| Initial Permeability (µi): | 2300 |
| Height: | 4.95mm |
| Gap: | Ungapped |
| Finish: | Epoxy |
| Effective Magnetic Volume (Ve) mm³: | 548 |
| Effective Length (le) mm: | 37.2 |
| Effective Area (Ae) mm²: | 14.7 |
| Diameter: | 16.13mm |
| Core Type: | Toroid |
| Core Factor (ΣI/A) mm1: | 2.53 |
| Email: | info@cjjhk.com |
Introduce
We can supply TX16/9.1/4.7-3C94, use the request quote form to request TX16/9.1/4.7-3C94 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TX16/9.1/4.7-3C94.The price and lead time for TX16/9.1/4.7-3C94 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TX16/9.1/4.7-3C94.We look forward to working with you to establish long-term relations of cooperation
