TTC-5020
Tamura

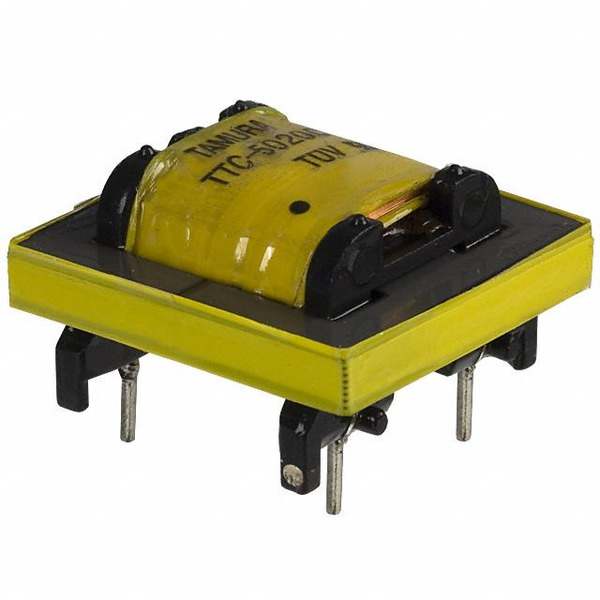

Images are for reference only.
See Product Specifications for product details.
Buy TTC-5020 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5020 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TTC-5020 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER COUPLING 600:301 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.58 | $3.713 | $3.002 | $2.812 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.686 | $2.607 | $2.528 | $2.449 | ||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Isolation: | 1875VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary: | 1:1 |
| Transformer Type: | Data/Voice Coupling |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.886" L x 0.909" W (22.50mm x 23.10mm) |
| Series: | TTC |
| Return Loss: | - |
| Power Level: | -20dB ~ 4dB |
| Packaging: | Bulk |
| Other Names: | MT7236 TTC-5020-ND TTC-5020C TTC5020 |
| Operating Temperature: | - |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 26 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | 3.75dB Max @ 1kHz |
| Impedance - Secondary (Ohms): | 301 |
| Impedance - Primary (Ohms): | 600 |
| Height - Seated (Max): | 0.543" (13.80mm) |
| Frequency Response: | ±1dB ~ ±4dB |
| Frequency Range: | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary: | 152 Ohm |
| DC Resistance (DCR) - Primary: | 152 Ohm |
| Approvals: | CSA-C22.2 No. 950-95, UL1950 |
| Email: | info@cjjhk.com |
Introduce
We can supply TTC-5020, use the request quote form to request TTC-5020 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TTC-5020.The price and lead time for TTC-5020 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TTC-5020.We look forward to working with you to establish long-term relations of cooperation
