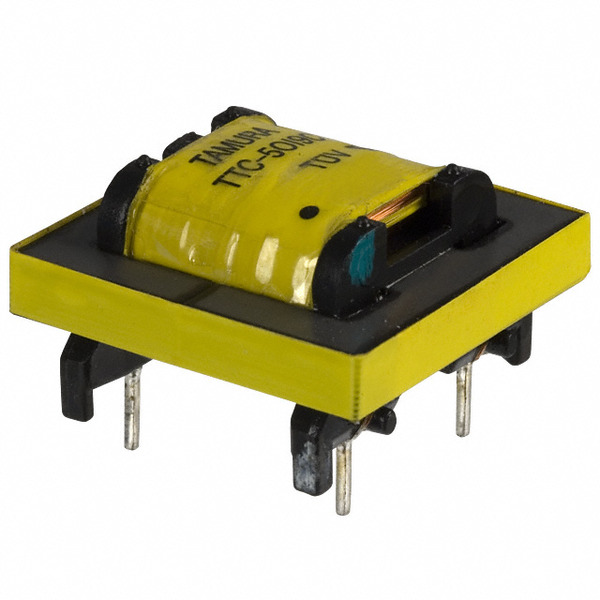

TTC-5019
Tamura
Images are for reference only.
See Product Specifications for product details.
Buy TTC-5019 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-5019 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TTC-5019 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSFORMER COUPLING 600:260 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Isolation: | 1875VRMS @ 1 Second |
| Turns Ratio - Primary:Secondary: | 1:1 |
| Transformer Type: | Data/Voice Coupling |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.886" L x 0.909" W (22.50mm x 23.10mm) |
| Series: | TTC |
| Return Loss: | 8dB Min @ 200Hz ~ 4kHz |
| Power Level: | - |
| Packaging: | Bulk |
| Other Names: | MT7235 TTC-5019-ND TTC-5019C |
| Operating Temperature: | - |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | 4dB Max @ 1kHz |
| Impedance - Secondary (Ohms): | 260 |
| Impedance - Primary (Ohms): | 600 |
| Height - Seated (Max): | 0.543" (13.80mm) |
| Frequency Response: | ±2.5dB |
| Frequency Range: | 200Hz ~ 4kHz |
| DC Resistance (DCR) - Secondary: | 170 Ohm |
| DC Resistance (DCR) - Primary: | 170 Ohm |
| Approvals: | CSA-C22.2 No. 950-95, UL1950 |
| Email: | info@cjjhk.com |
Introduce
We can supply TTC-5019, use the request quote form to request TTC-5019 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TTC-5019.The price and lead time for TTC-5019 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TTC-5019.We look forward to working with you to establish long-term relations of cooperation
