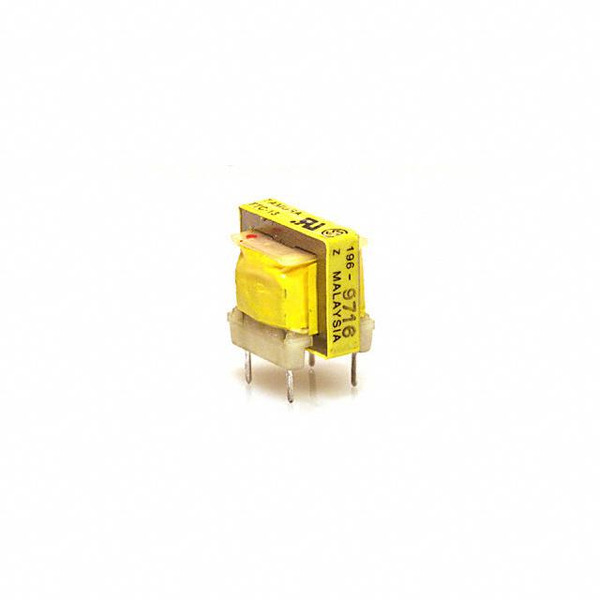

TTC-13
Tamura
Images are for reference only.
See Product Specifications for product details.
Buy TTC-13 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TTC-13 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TTC-13 |
|---|---|
| Manufacturer | Tamura |
| Description | TRANSF TELE COUP 4000:600 0 MADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 560 pcs | ||||
|---|---|---|---|---|---|
| $3.09 | |||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Isolation: | 1500VRMS @ 1 Minute |
| Turns Ratio - Primary:Secondary: | 1:0.397 |
| Transformer Type: | Data/Voice Coupling |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.799" L x 0.650" W (20.30mm x 16.50mm) |
| Series: | TTC |
| Return Loss: | - |
| Power Level: | -45dB ~ 7dB |
| Packaging: | Bulk |
| Other Names: | MT11105 MT4137 |
| Operating Temperature: | - |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 26 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Loss: | 1.2dB Max @ 1kHz |
| Impedance - Secondary (Ohms): | 600 |
| Impedance - Primary (Ohms): | 4k |
| Height - Seated (Max): | 0.736" (18.70mm) |
| Frequency Response: | ±0.5dB |
| Frequency Range: | 300Hz ~ 3.5kHz |
| DC Resistance (DCR) - Secondary: | 45 Ohm |
| DC Resistance (DCR) - Primary: | 225 Ohm |
| Approvals: | CSA-C22.2 No. 66-M1988, UL1459 |
| Email: | info@cjjhk.com |
Introduce
We can supply TTC-13, use the request quote form to request TTC-13 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TTC-13.The price and lead time for TTC-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TTC-13.We look forward to working with you to establish long-term relations of cooperation
