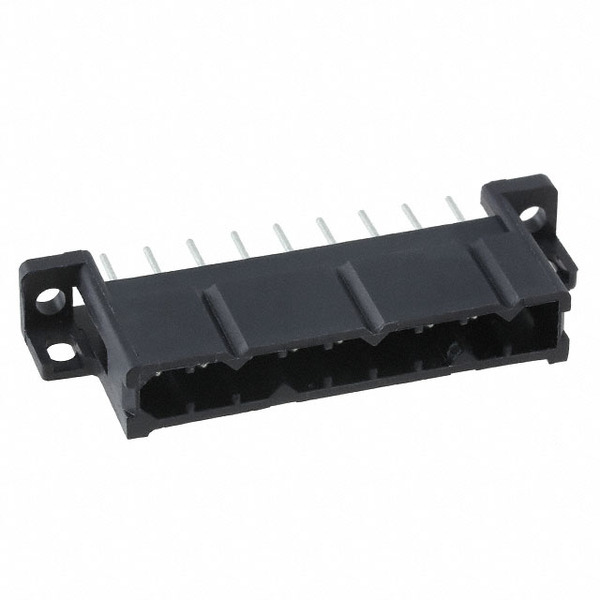

TST09RD01T
Cannon
Images are for reference only.
See Product Specifications for product details.
Buy TST09RD01T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TST09RD01T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TST09RD01T |
|---|---|
| Manufacturer | Cannon |
| Description | CONN RCPT STR PCB 9POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $7.345 | |||||
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Trident Slimline |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 1003-2507 192991-0322 192991-0322-ND 1929910322 TST09RD01T-ND |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 9 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.911" (23.15mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Mounting Flange |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole 9 position 0.200" (5.08mm) |
| Current Rating: | 10A |
| Contact Type: | Male Pin |
| Contact Shape: | Circular |
| Contact Material: | - |
| Contact Length - Post: | 0.185" (4.70mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Tin |
| Connector Type: | Receptacle |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply TST09RD01T, use the request quote form to request TST09RD01T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TST09RD01T.The price and lead time for TST09RD01T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TST09RD01T.We look forward to working with you to establish long-term relations of cooperation
