TST-107-01-L-D
Samtec, Inc.

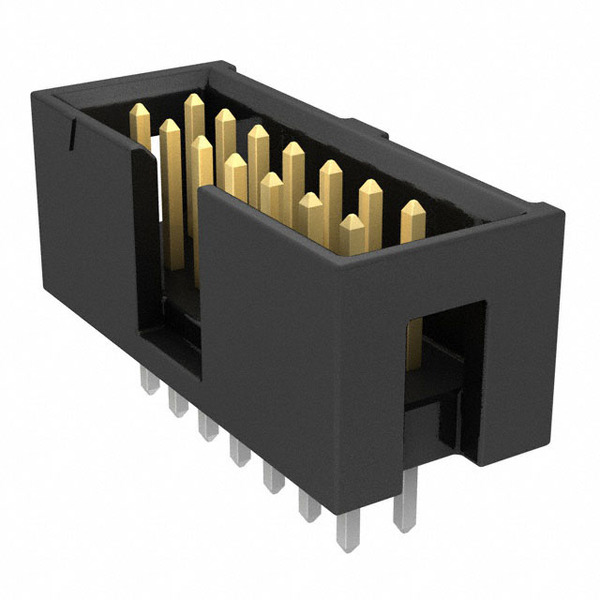

Images are for reference only.
See Product Specifications for product details.
Buy TST-107-01-L-D with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TST-107-01-L-D with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TST-107-01-L-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 14POS .100" T/H GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $2.06 | $1.867 | $1.60 | $1.334 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.143 | $1.013 | $0.991 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Flex Stack, TST |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.480" (12.19mm) |
| Other Names: | SAM8993 TST-107-01-L-D-ND |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 14 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height: | 0.350" (8.89mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 14 position 0.100" (2.54mm) |
| Current Rating: | 3.4A per Contact |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.115" (2.92mm) |
| Contact Length - Mating: | 0.250" (6.35mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply TST-107-01-L-D, use the request quote form to request TST-107-01-L-D pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TST-107-01-L-D.The price and lead time for TST-107-01-L-D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TST-107-01-L-D.We look forward to working with you to establish long-term relations of cooperation
