TSPB15U50S S1G
TSC (Taiwan Semiconductor)

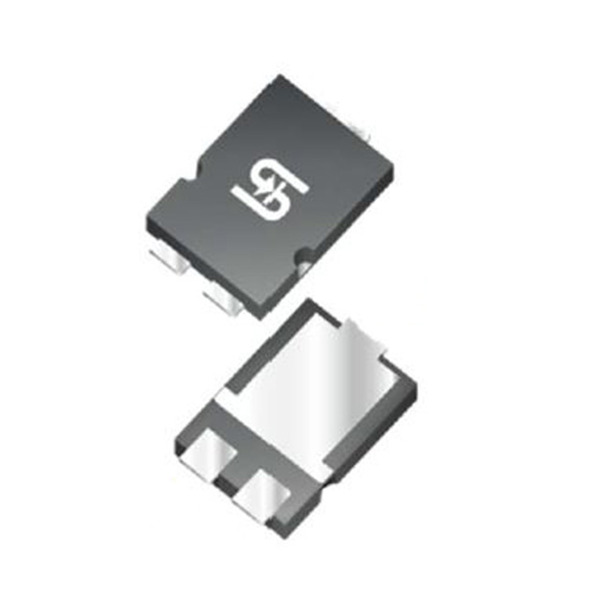

Images are for reference only.
See Product Specifications for product details.
Buy TSPB15U50S S1G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TSPB15U50S S1G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TSPB15U50S S1G |
|---|---|
| Manufacturer | Taiwan Semiconductor |
| Description | 15A, 50V, Trench Schottky |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.566 | $1.414 | $1.275 | $1.247 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 560mV @ 15A |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 50V |
| Supplier Device Package: | SMPC4.0 |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | TO-277, 3-PowerDFN |
| Other Names: | TSPB15U50S S1GTR TSPB15U50S S1GTR-ND TSPB15U50SS1GTR |
| Operating Temperature - Junction: | -55°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 28 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 50V 15A Surface Mount SMPC4.0 |
| Current - Reverse Leakage @ Vr: | 2mA @ 50V |
| Current - Average Rectified (Io): | 15A |
| Capacitance @ Vr, F: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply TSPB15U50S S1G, use the request quote form to request TSPB15U50S S1G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSPB15U50S S1G.The price and lead time for TSPB15U50S S1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSPB15U50S S1G.We look forward to working with you to establish long-term relations of cooperation
