TSM6NB60CZ C0G
TSC (Taiwan Semiconductor)

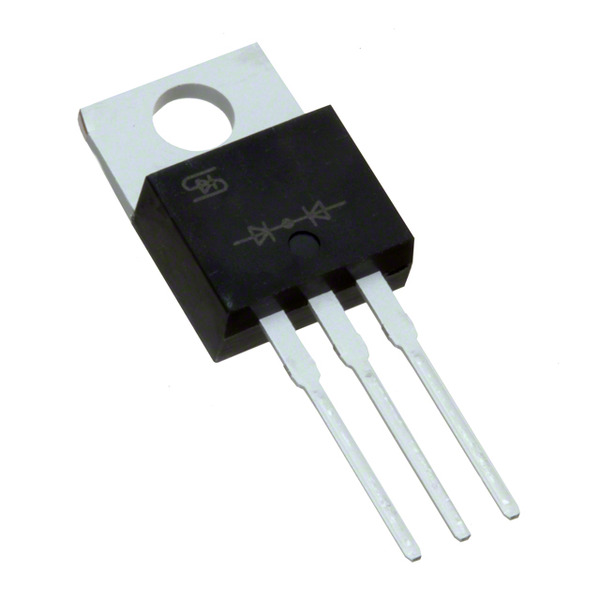

Images are for reference only.
See Product Specifications for product details.
Buy TSM6NB60CZ C0G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TSM6NB60CZ C0G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TSM6NB60CZ C0G |
|---|---|
| Manufacturer | TSC (Taiwan Semiconductor) |
| Description | MOSFET N-CHANNEL 600V 6A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 4.5V @ 250µA |
|---|---|
| Vgs (Max): | ±30V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | TO-220 |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 1.6 Ohm @ 3A, 10V |
| Power Dissipation (Max): | 40W (Tc) |
| Packaging: | Tube |
| Package / Case: | TO-220-3 |
| Other Names: | TSM6NB60CZ C0G-ND TSM6NB60CZC0G |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 872pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs: | 18.3nC @ 10V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Drain to Source Voltage (Vdss): | 600V |
| Detailed Description: | N-Channel 600V 6A (Tc) 40W (Tc) Through Hole TO-220 |
| Current - Continuous Drain (Id) @ 25°C: | 6A (Tc) |
| Email: | info@cjjhk.com |
Introduce
We can supply TSM6NB60CZ C0G, use the request quote form to request TSM6NB60CZ C0G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM6NB60CZ C0G.The price and lead time for TSM6NB60CZ C0G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM6NB60CZ C0G.We look forward to working with you to establish long-term relations of cooperation
