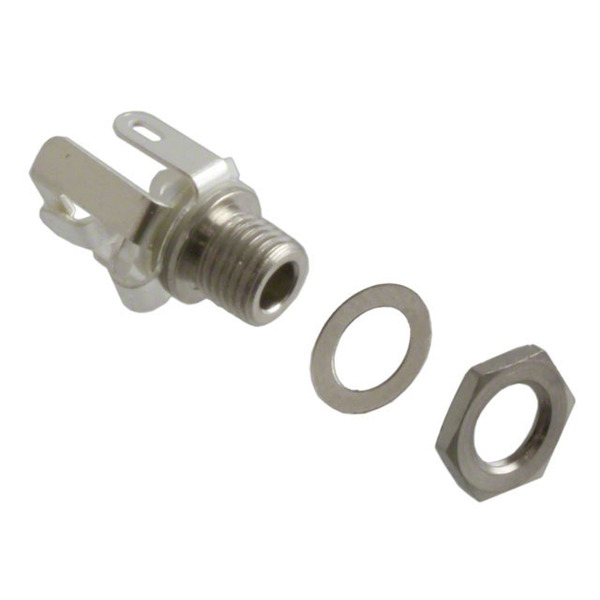

TR2A
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy TR2A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TR2A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TR2A |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK MONO 2.46MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.26 | $3.005 | $2.833 | $2.747 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.618 | $2.576 | $2.525 | |||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Thread Size: | #10-48 |
| Termination: | Solder Eyelet(s) |
| Signal Lines: | Mono |
| Shielding: | Unshielded |
| Series: | Micro-Jax® |
| Panel Hole Size: | 0.190" (4.83mm) |
| Packaging: | Bulk |
| Other Names: | SC1514 TR2A-ND |
| Operating Temperature: | -20°C ~ 65°C |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Mating Length/Depth: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 2.46mm ID (0.097") |
| Includes: | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material: | - |
| Gender: | Female |
| Features: | Mounting Hardware, Thread Lock |
| Detailed Description: | 2.46mm ID (0.097") Phone Jack Mono Connector Solder Eyelet(s) |
| Contact Material - Plating: | Silver |
| Contact Material: | Copper Alloy |
| Connector Type: | Phone Jack |
| Cable Opening: | - |
| Body Material: | Copper Alloy |
| Body Color: | Black |
| Actual Diameter: | 0.101" (2.57mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply TR2A, use the request quote form to request TR2A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TR2A.The price and lead time for TR2A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TR2A.We look forward to working with you to establish long-term relations of cooperation
