TPX205950MT-7010A1
TDK Corporation

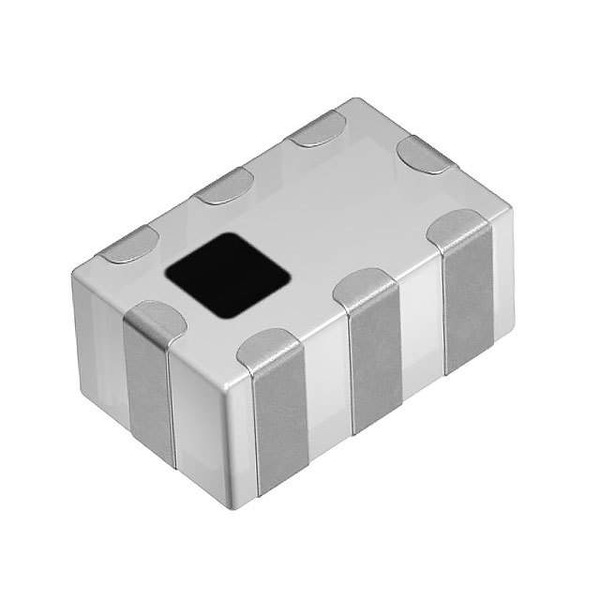

Images are for reference only.
See Product Specifications for product details.
Buy TPX205950MT-7010A1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TPX205950MT-7010A1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TPX205950MT-7010A1 |
|---|---|
| Manufacturer | TDK |
| Description | Multilayer Triplexer for 1560MHz to 1606MHz/2400MHz to 2500MHz/4900MHz to 5950MHz 8-Pin SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.212 | $0.192 | $0.173 | $0.169 | ||
Specifications
Data sheet
| Series: | TPX |
|---|---|
| Return Loss (Low Band / High Band): | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 0805 (2012 Metric), 6 PC Pad |
| Other Names: | 445-174756-2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Low Band Attenuation (min / max dB): | 13.00dB / 23.00dB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| High Band Attenuation (min / max dB): | 5.00dB / 32.00dB |
| Frequency Bands (Low / High): | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz |
| Detailed Description: | RF Diplexor 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz 0805 (2012 Metric), 6 PC Pad |
| Email: | info@cjjhk.com |
Introduce
We can supply TPX205950MT-7010A1, use the request quote form to request TPX205950MT-7010A1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPX205950MT-7010A1.The price and lead time for TPX205950MT-7010A1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPX205950MT-7010A1.We look forward to working with you to establish long-term relations of cooperation
