TPSMD15A
Hamlin / Littelfuse

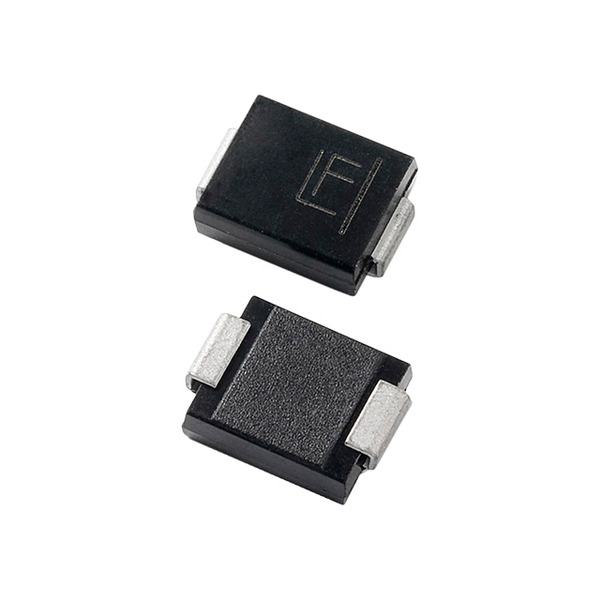

Images are for reference only.
See Product Specifications for product details.
Buy TPSMD15A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TPSMD15A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TPSMD15A |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | TVS DIODE 15V 24.4V DO214AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.14 | $1.012 | $0.914 | $0.80 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.702 | $0.62 | $0.49 | |||
Specifications
Data sheet
| Voltage - Reverse Standoff (Typ): | 15V |
|---|---|
| Voltage - Clamping (Max) @ Ipp: | 24.4V |
| Voltage - Breakdown (Min): | 16.7V |
| Unidirectional Channels: | 1 |
| Type: | Zener |
| Supplier Device Package: | DO-214AB (SMCJ) |
| Series: | Automotive, AEC-Q101, TPSMD |
| Power Line Protection: | No |
| Power - Peak Pulse: | 3000W (3kW) |
| Packaging: | Original-Reel® |
| Package / Case: | DO-214AB, SMC |
| Other Names: | F6562DKR |
| Operating Temperature: | -65°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs): | 123A |
| Capacitance @ Frequency: | - |
| Applications: | Automotive |
| Email: | info@cjjhk.com |
Introduce
We can supply TPSMD15A, use the request quote form to request TPSMD15A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPSMD15A.The price and lead time for TPSMD15A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPSMD15A.We look forward to working with you to establish long-term relations of cooperation
