TMC603A-LA
TRINAMIC Motion Control GmbH

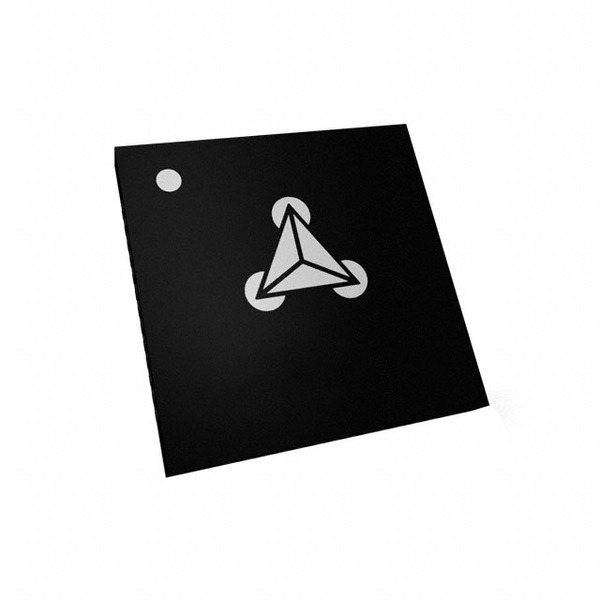

Images are for reference only.
See Product Specifications for product details.
Buy TMC603A-LA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TMC603A-LA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TMC603A-LA |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | IC MOTOR CTRLR PAR 52QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.88 | $9.788 | $8.918 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $8.048 | $7.395 | $6.743 | |||
Specifications
Data sheet
| Voltage - Supply: | 3.3 V ~ 5 V |
|---|---|
| Voltage - Load: | 12 V ~ 50 V |
| Technology: | Power MOSFET |
| Supplier Device Package: | 52-QFN (8x8) |
| Step Resolution: | - |
| Series: | - |
| Packaging: | Tray |
| Package / Case: | 52-VFQFN Exposed Pad |
| Output Configuration: | Pre-Driver - Half Bridge (3) |
| Other Names: | 00-0069 1460-1050 |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushless DC (BLDC) |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Function: | Controller - Commutation, Direction Management |
| Detailed Description: | Motor Driver Power MOSFET PWM 52-QFN (8x8) |
| Current - Output: | - |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply TMC603A-LA, use the request quote form to request TMC603A-LA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TMC603A-LA.The price and lead time for TMC603A-LA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TMC603A-LA.We look forward to working with you to establish long-term relations of cooperation
