TLP331(F)
Toshiba Semiconductor and Storage

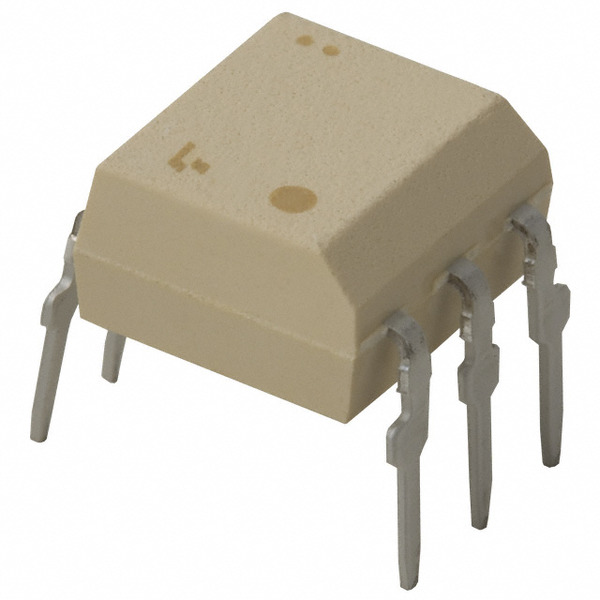

Images are for reference only.
See Product Specifications for product details.
Buy TLP331(F) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TLP331(F) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TLP331(F) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | OPTOISO 5KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.58 | $1.287 | $0.99 | $0.891 | ||
Specifications
Data sheet
| Voltage - Output (Max): | 55V |
|---|---|
| Voltage - Isolation: | 5000Vrms |
| Voltage - Forward (Vf) (Typ): | 1.15V |
| Vce Saturation (Max): | 400mV |
| Turn On / Turn Off Time (Typ): | 10µs, 8µs |
| Supplier Device Package: | 6-DIP |
| Series: | - |
| Rise / Fall Time (Typ): | 8µs, 8µs |
| Packaging: | Tube |
| Package / Case: | 6-DIP (0.300", 7.62mm) |
| Output Type: | Transistor with Base |
| Other Names: | TLP331F |
| Operating Temperature: | -55°C ~ 100°C |
| Number of Channels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | DC |
| Detailed Description: | Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP |
| Current Transfer Ratio (Min): | 100% @ 1mA |
| Current Transfer Ratio (Max): | 1200% @ 1mA |
| Current - Output / Channel: | 50mA |
| Current - DC Forward (If) (Max): | 50mA |
| Email: | info@cjjhk.com |
Introduce
We can supply TLP331(F), use the request quote form to request TLP331(F) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TLP331(F).The price and lead time for TLP331(F) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TLP331(F).We look forward to working with you to establish long-term relations of cooperation
