TK20V60W,LVQ
Toshiba Semiconductor and Storage

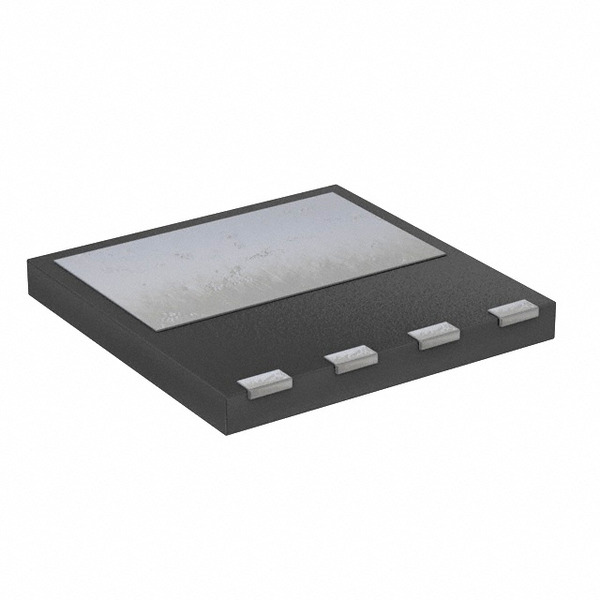

Images are for reference only.
See Product Specifications for product details.
Buy TK20V60W,LVQ with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TK20V60W,LVQ with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TK20V60W,LVQ |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET N CH 600V 20A 5DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $6.25 | $5.582 | $4.577 | $3.706 | $3.126 | |
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 3.7V @ 1mA |
|---|---|
| Vgs (Max): | ±30V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | 4-DFN-EP (8x8) |
| Series: | DTMOSIV |
| Rds On (Max) @ Id, Vgs: | 170 mOhm @ 10A, 10V |
| Power Dissipation (Max): | 156W (Tc) |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 4-VSFN Exposed Pad |
| Other Names: | TK20V60WLVQCT |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 1680pF @ 300V |
| Gate Charge (Qg) (Max) @ Vgs: | 48nC @ 10V |
| FET Type: | N-Channel |
| FET Feature: | Super Junction |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Drain to Source Voltage (Vdss): | 600V |
| Detailed Description: | N-Channel 600V 20A (Ta) 156W (Tc) Surface Mount 4-DFN-EP (8x8) |
| Current - Continuous Drain (Id) @ 25°C: | 20A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply TK20V60W,LVQ, use the request quote form to request TK20V60W,LVQ pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TK20V60W,LVQ.The price and lead time for TK20V60W,LVQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TK20V60W,LVQ.We look forward to working with you to establish long-term relations of cooperation
