TIP142T
STMicroelectronics

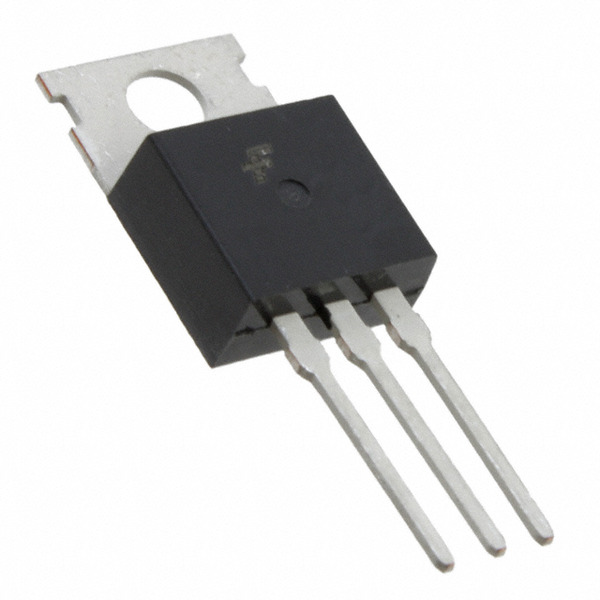

Images are for reference only.
See Product Specifications for product details.
Buy TIP142T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TIP142T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TIP142T |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | TIP142 Series 100 V 10 A NPN Epitaxial Silicon Darlington Transistor TO-220-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.153 | $1.04 | $0.938 | $0.918 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 100V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 3V @ 40mA, 10A |
| Transistor Type: | NPN - Darlington |
| Supplier Device Package: | TO-220-3 |
| Series: | - |
| Power - Max: | 80W |
| Packaging: | Bulk |
| Package / Case: | TO-220-3 |
| Other Names: | TIP142TFS |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Frequency - Transition: | - |
| Detailed Description: | Bipolar (BJT) Transistor NPN - Darlington 100V 10A 80W Through Hole TO-220-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 1000 @ 5A, 4V |
| Current - Collector Cutoff (Max): | 2mA |
| Current - Collector (Ic) (Max): | 10A |
| Base Part Number: | TIP142 |
| Email: | info@cjjhk.com |
Introduce
We can supply TIP142T, use the request quote form to request TIP142T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TIP142T.The price and lead time for TIP142T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TIP142T.We look forward to working with you to establish long-term relations of cooperation
