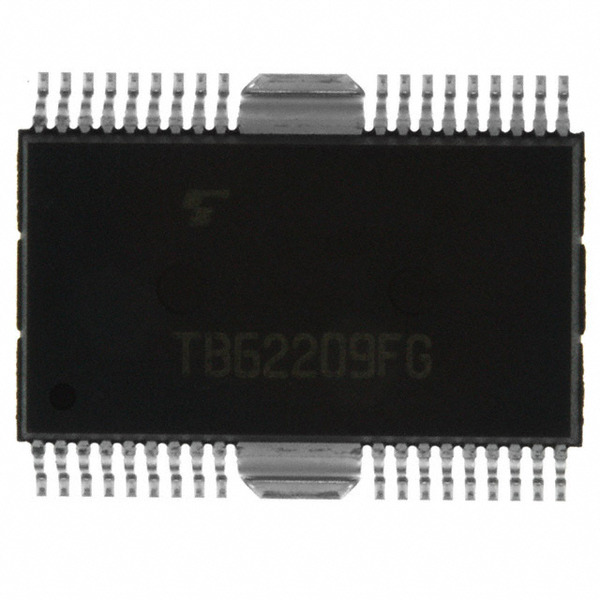

TB62209FG,EL
Toshiba Semiconductor and Storage
Images are for reference only.
See Product Specifications for product details.
Buy TB62209FG,EL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TB62209FG,EL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TB62209FG,EL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 36HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 5.5 V |
|---|---|
| Voltage - Load: | 13 V ~ 34 V |
| Technology: | DMOS |
| Supplier Device Package: | 36-HSOP |
| Step Resolution: | 1, 1/2, 1/4, 1/8, 1/16 |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 36-BSSOP (0.346", 8.80mm Width) + 2 Heat Tabs |
| Output Configuration: | Half Bridge (4) |
| Other Names: | TB62209FG (O,EL) TB62209FG(EL) TB62209FG(O,EL) TB62209FGELTR TB62209FGOEL TB62209FGTR TB62209FGTR-ND |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Motor Type - Stepper: | Bipolar |
| Motor Type - AC, DC: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | Parallel |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description: | Bipolar Motor Driver DMOS Parallel 36-HSOP |
| Current - Output: | 1.5A |
| Base Part Number: | TB62209 |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply TB62209FG,EL, use the request quote form to request TB62209FG,EL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TB62209FG,EL.The price and lead time for TB62209FG,EL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TB62209FG,EL.We look forward to working with you to establish long-term relations of cooperation
