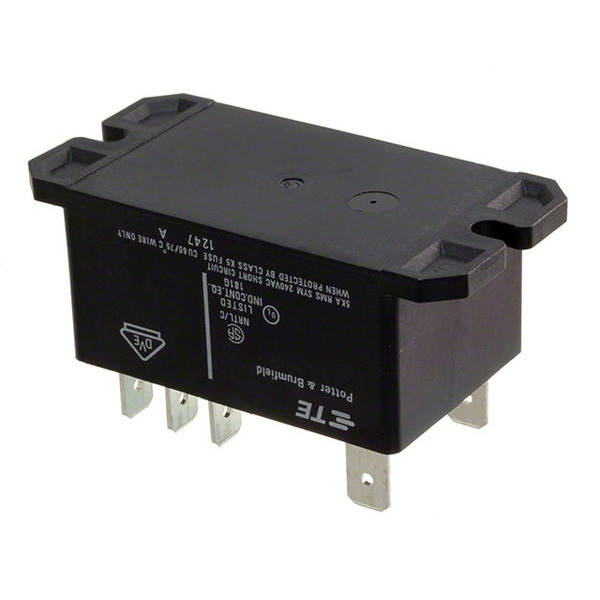

T92P11A22-12
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy T92P11A22-12 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy T92P11A22-12 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | T92P11A22-12 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 30A 12V |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $19.69 | $17.499 | $16.624 | $15.749 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $14.874 | $13.562 | $12.687 | |||
Specifications
Data sheet
| Turn On Voltage (Max): | 9.6 VAC |
|---|---|
| Turn Off Voltage (Min): | 1.2 VAC |
| Termination Style: | Quick Connect - 0.250" (6.3mm) |
| Switching Voltage: | 277VAC - Nom |
| Series: | T92 |
| Release Time: | 15ms |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Other Names: | 3-1393211-9 T92P11A2212 |
| Operating Temperature: | -55°C ~ 65°C |
| Operate Time: | 15ms |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Features: | Insulation - Class F |
| Detailed Description: | General Purpose Relay DPDT (2 Form C) 12VAC Coil Chassis Mount |
| Contact Rating (Current): | 30A |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Contact Form: | DPDT (2 Form C) |
| Coil Voltage: | 12VAC |
| Coil Type: | Non Latching |
| Coil Resistance: | 9.1 Ohms |
| Coil Power: | 4 VA |
| Coil Current: | 333mA |
| Email: | info@cjjhk.com |
Introduce
We can supply T92P11A22-12, use the request quote form to request T92P11A22-12 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number T92P11A22-12.The price and lead time for T92P11A22-12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# T92P11A22-12.We look forward to working with you to establish long-term relations of cooperation
