T1M-10-F-SH-L-K
Samtec, Inc.

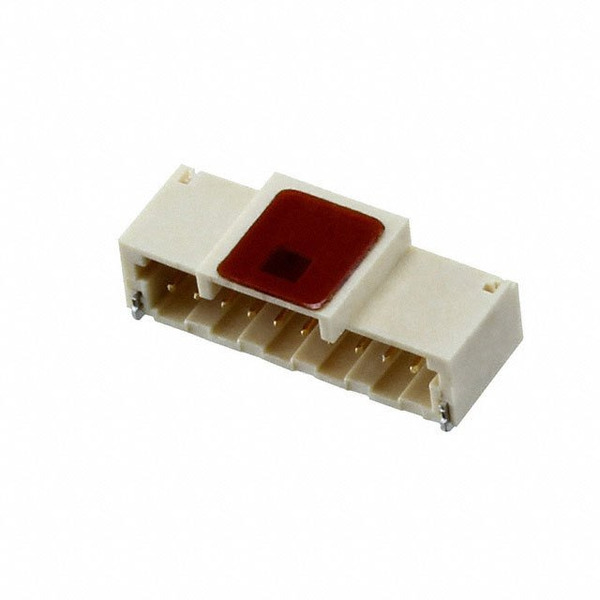

Images are for reference only.
See Product Specifications for product details.
Buy T1M-10-F-SH-L-K with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy T1M-10-F-SH-L-K with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | T1M-10-F-SH-L-K |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | T1M 1MM TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.79 | $10.72 | $10.452 | $9.648 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.112 | $8.308 | $7.772 | $7.129 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | T1M |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.039" (1.00mm) |
| Packaging: | Strip |
| Overall Contact Length: | - |
| Other Names: | SAM11993 T1M-10-F-SH-L-K-ND |
| Operating Temperature: | -55°C ~ 85°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.181" (4.60mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Pick and Place |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Surface Mount, Right Angle 10 position 0.039" (1.00mm) |
| Current Rating: | 3.3A per Contact |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | - |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 3.00µin (0.076µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply T1M-10-F-SH-L-K, use the request quote form to request T1M-10-F-SH-L-K pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number T1M-10-F-SH-L-K.The price and lead time for T1M-10-F-SH-L-K depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# T1M-10-F-SH-L-K.We look forward to working with you to establish long-term relations of cooperation
