SZNUF8152MUT2G
AMI Semiconductor / ON Semiconductor

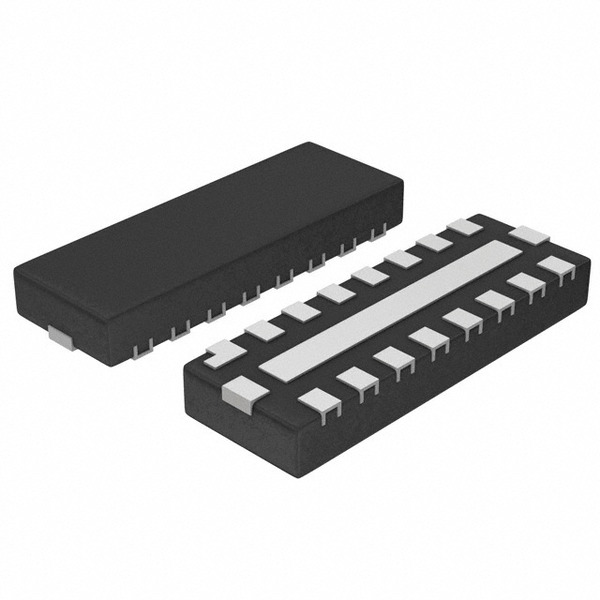

Images are for reference only.
See Product Specifications for product details.
Buy SZNUF8152MUT2G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SZNUF8152MUT2G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SZNUF8152MUT2G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | FILTER RC(PI) 125MHZ ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Values: | R = 28 Ohms, C = 17pF, L = 1nH |
| Type: | Low Pass |
| Technology: | RC (Pi) |
| Size / Dimension: | 0.138" L x 0.047" W (3.50mm x 1.20mm) |
| Series: | Automotive, AEC-Q101 |
| Resistance - Channel (Ohms): | 28 |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 16-UFDFN Exposed Pad |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Channels: | 8 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.022" (0.55mm) |
| Filter Order: | 3rd |
| ESD Protection: | Yes |
| Detailed Description: | RC (Pi) EMI Filter 3rd Order Low Pass 8 Channel R = 28 Ohms, C = 17pF, L = 1nH 16-UFDFN Exposed Pad |
| Center / Cutoff Frequency: | 125MHz (Cutoff) |
| Attenuation Value: | -25dB @ 800MHz ~ 3GHz |
| Applications: | Automotive |
| Email: | info@cjjhk.com |
Introduce
We can supply SZNUF8152MUT2G, use the request quote form to request SZNUF8152MUT2G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SZNUF8152MUT2G.The price and lead time for SZNUF8152MUT2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SZNUF8152MUT2G.We look forward to working with you to establish long-term relations of cooperation
