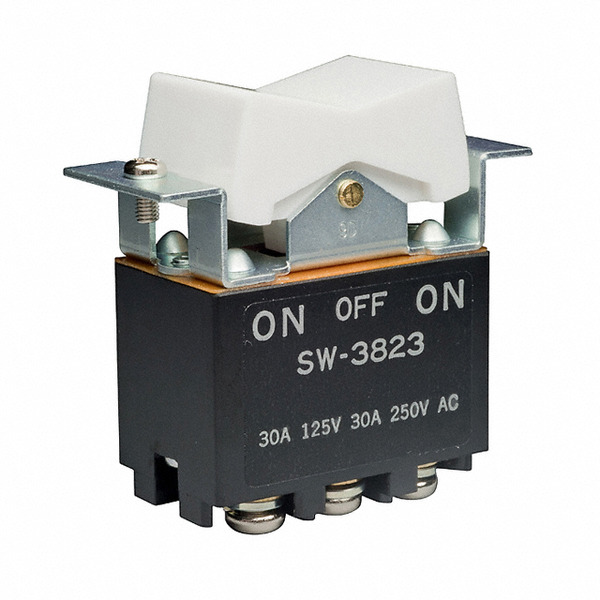

SW3823/U
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy SW3823/U with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SW3823/U with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SW3823/U |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROCKER DPDT 30A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $23.09 | $21.263 | $20.655 | $20.048 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $19.44 | $17.618 | $16.403 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Screw Terminal |
| Switch Function: | On-Off-On |
| Series: | SW |
| Panel Cutout Dimensions: | - |
| Packaging: | Bulk |
| Other Names: | 360-2932 SW3823/U-ND SW3823/U-RO SW3823/U-RO-ND SW3823U |
| Operating Temperature: | -10°C ~ 70°C |
| Mounting Type: | Panel Mount, Flange |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 50,000 Cycles |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | - |
| Electrical Life: | 25,000 Cycles |
| Detailed Description: | Rocker Switch DPDT 30A (AC/DC) 125V Panel Mount, Flange |
| Current Rating: | 30A (AC/DC) |
| Color - Actuator/Cap: | White |
| Circuit: | DPDT |
| Actuator Type: | Concave (Standard V) |
| Actuator Marking: | No Marking |
| Email: | info@cjjhk.com |
Introduce
We can supply SW3823/U, use the request quote form to request SW3823/U pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SW3823/U.The price and lead time for SW3823/U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SW3823/U.We look forward to working with you to establish long-term relations of cooperation
