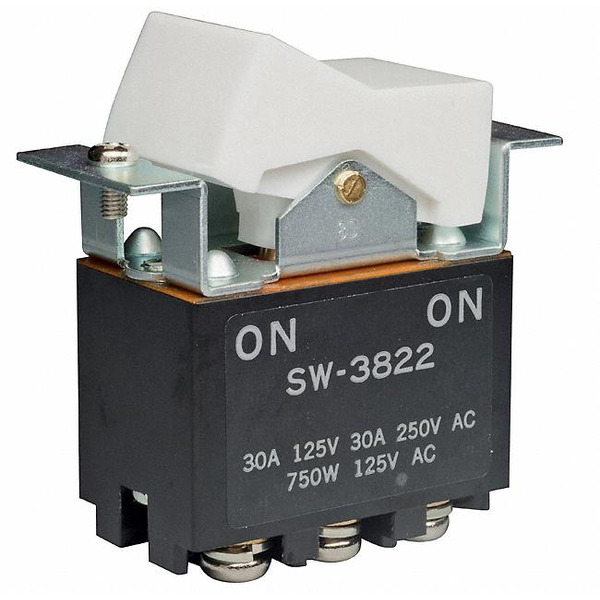

SW3822
NKK Switches
Images are for reference only.
See Product Specifications for product details.
Buy SW3822 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SW3822 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SW3822 |
|---|---|
| Manufacturer | NKK Switches |
| Description | SWITCH ROCKER DPDT 30A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $22.61 | $20.825 | $20.23 | $19.635 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $19.04 | $17.255 | $16.065 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 30V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Screw Terminal |
| Switch Function: | On-On |
| Series: | SW |
| Panel Cutout Dimensions: | - |
| Packaging: | Bulk |
| Other Names: | 360-1502 360-1502-ND SW3822-RO SW3822-RO-ND |
| Operating Temperature: | -10°C ~ 70°C |
| Mounting Type: | Panel Mount, Flange |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 50,000 Cycles |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Features: | - |
| Electrical Life: | 25,000 Cycles |
| Detailed Description: | Rocker Switch DPDT 30A (AC/DC) 125V Panel Mount, Flange |
| Current Rating: | 30A (AC/DC) |
| Color - Actuator/Cap: | White |
| Circuit: | DPDT |
| Actuator Type: | Concave (Standard V) |
| Actuator Marking: | No Marking |
| Email: | info@cjjhk.com |
Introduce
We can supply SW3822, use the request quote form to request SW3822 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SW3822.The price and lead time for SW3822 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SW3822.We look forward to working with you to establish long-term relations of cooperation
