STP16DPPS05MTR
STMicroelectronics

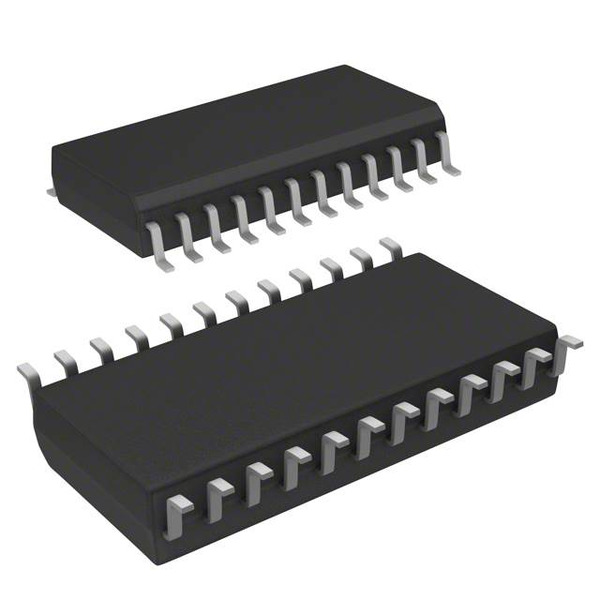

Images are for reference only.
See Product Specifications for product details.
Buy STP16DPPS05MTR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy STP16DPPS05MTR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | STP16DPPS05MTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | STP16DPPS05 Series 40mA 30 MHz 16-Bit Constant Current LED Sink Driver SOIC-24 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.526 | $1.377 | $1.242 | $1.215 | ||
Specifications
Data sheet
| Voltage - Supply (Min): | 3V |
|---|---|
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 20V |
| Type: | Linear |
| Topology: | Shift Register |
| Supplier Device Package: | 24-SOP |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 24-SOIC (0.295", 7.50mm Width) |
| Other Names: | 497-9080-2 |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Number of Outputs: | 16 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 38 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency: | 30MHz |
| Dimming: | - |
| Detailed Description: | LED Driver IC 16 Output Linear Shift Register 40mA 24-SOP |
| Current - Output / Channel: | 40mA |
| Base Part Number: | STP16DPPS05 |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply STP16DPPS05MTR, use the request quote form to request STP16DPPS05MTR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STP16DPPS05MTR.The price and lead time for STP16DPPS05MTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STP16DPPS05MTR.We look forward to working with you to establish long-term relations of cooperation
