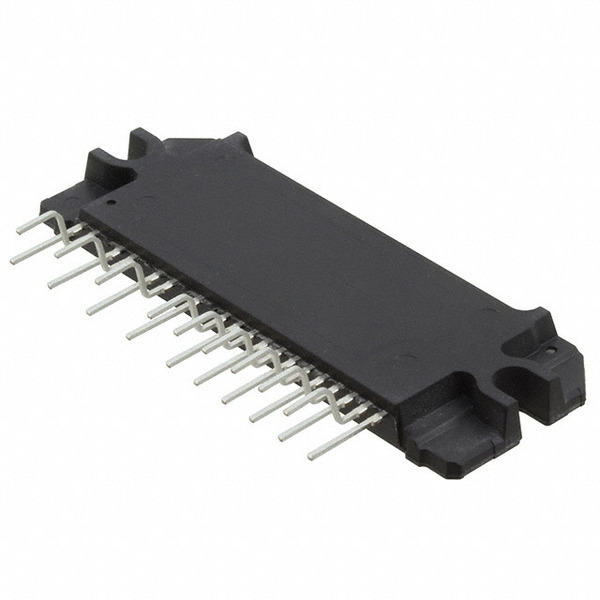

STK544UC62K-E
onsemi
Images are for reference only.
See Product Specifications for product details.
Buy STK544UC62K-E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy STK544UC62K-E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | STK544UC62K-E |
|---|---|
| Manufacturer | onsemi |
| Description | 3-Phase Inverter Motor Driver 0V to 450V 23-Pin SIP Fan-Fold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $14.78 | $13.342 | $12.034 | $11.772 | ||
Specifications
Data sheet
| Voltage - Supply: | 12.5 V ~ 17.5 V |
|---|---|
| Voltage - Load: | 450V (Max) |
| Technology: | IGBT |
| Supplier Device Package: | 23-SIP-1 |
| Series: | - |
| Rds On (Typ): | - |
| Packaging: | Tube |
| Package / Case: | 23-SIP, 19 Leads, Formed Leads |
| Output Configuration: | Half Bridge (3) |
| Other Names: | STK544UC62K-EOS |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 33 Weeks |
| Load Type: | Inductive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | Logic |
| Features: | Bootstrap Circuit |
| Fault Protection: | Shoot-Through, UVLO |
| Detailed Description: | Half Bridge (3) Driver AC Motors IGBT 23-SIP-1 |
| Current - Peak Output: | 20A |
| Current - Output / Channel: | 10A |
| Applications: | AC Motors |
| Email: | info@cjjhk.com |
Introduce
We can supply STK544UC62K-E, use the request quote form to request STK544UC62K-E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STK544UC62K-E.The price and lead time for STK544UC62K-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STK544UC62K-E.We look forward to working with you to establish long-term relations of cooperation
