STGP15M65DF2
STMicroelectronics

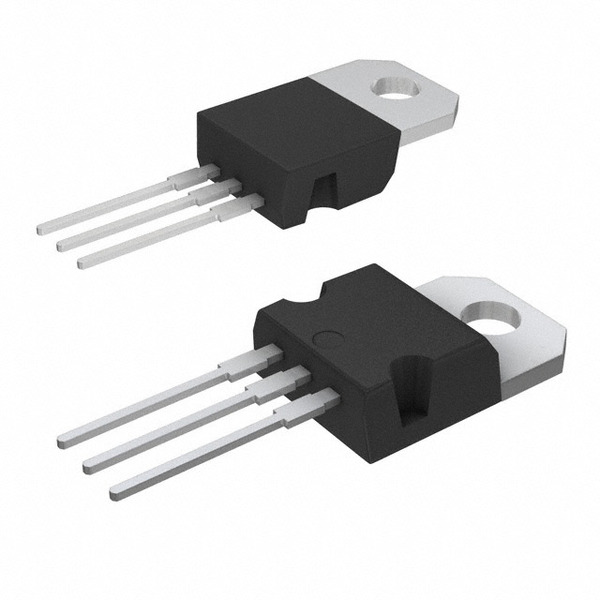

Images are for reference only.
See Product Specifications for product details.
Buy STGP15M65DF2 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy STGP15M65DF2 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | STGP15M65DF2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | Trench gate field-stop IGBT M series, 650 V, 15 A low loss |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.577 | $1.423 | $1.284 | $1.256 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 650V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2V @ 15V, 15A |
| Test Condition: | 400V, 15A, 12 Ohm, 15V |
| Td (on/off) @ 25°C: | 24ns/93ns |
| Switching Energy: | 90µJ (on), 450µJ (off) |
| Supplier Device Package: | TO-220 |
| Series: | - |
| Reverse Recovery Time (trr): | 142ns |
| Power - Max: | 136W |
| Packaging: | Tube |
| Package / Case: | TO-220-3 |
| Other Names: | 497-16482-5 |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Standard |
| IGBT Type: | Trench Field Stop |
| Gate Charge: | 45nC |
| Detailed Description: | IGBT Trench Field Stop 650V 30A 136W Through Hole TO-220 |
| Current - Collector Pulsed (Icm): | 60A |
| Current - Collector (Ic) (Max): | 30A |
