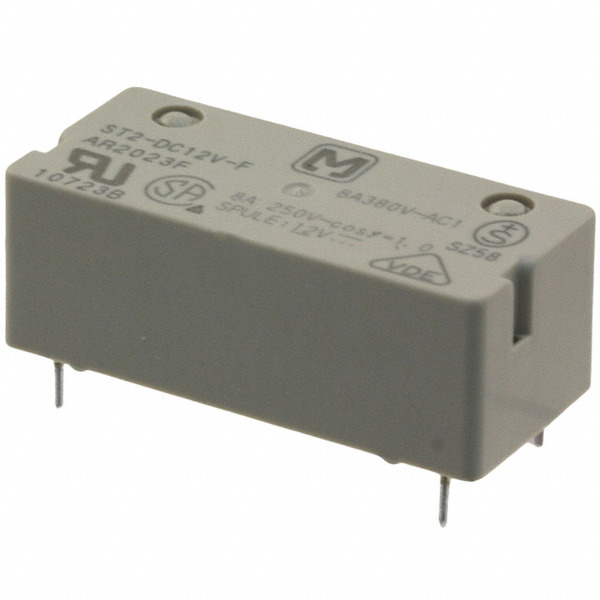

ST2-DC12V-F
Panasonic
Images are for reference only.
See Product Specifications for product details.
Buy ST2-DC12V-F with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ST2-DC12V-F with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ST2-DC12V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPST 8A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $12.26 | $10.90 | $10.355 | $9.81 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.265 | $8.448 | $7.903 | $7.494 | ||
Specifications
Data sheet
| Turn On Voltage (Max): | 9.6 VDC |
|---|---|
| Turn Off Voltage (Min): | 1.2 VDC |
| Termination Style: | PC Pin |
| Switching Voltage: | 380VAC, 250VDC - Max |
| Series: | ST |
| Release Time: | 10ms |
| Relay Type: | General Purpose |
| Packaging: | Tube |
| Other Names: | 255-2940 ST2-DC12V-F-ND ST2DC12VF |
| Operating Temperature: | -40°C ~ 60°C |
| Operate Time: | 15ms |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Sealed - Fully |
| Detailed Description: | General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole |
| Contact Rating (Current): | 8A |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Contact Form: | DPST-NO (2 Form A) |
| Coil Voltage: | 12VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 600 Ohms |
| Coil Power: | 240 mW |
| Coil Current: | 20.0mA |
| Email: | info@cjjhk.com |
Introduce
We can supply ST2-DC12V-F, use the request quote form to request ST2-DC12V-F pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ST2-DC12V-F.The price and lead time for ST2-DC12V-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ST2-DC12V-F.We look forward to working with you to establish long-term relations of cooperation
