SS14HE
onsemi

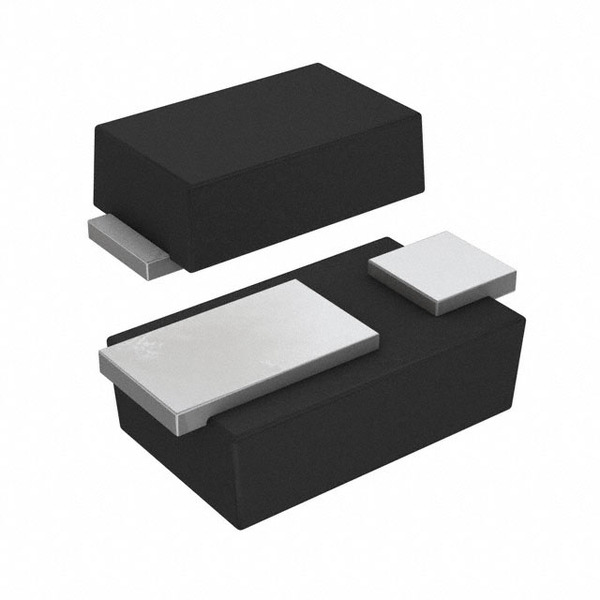

Images are for reference only.
See Product Specifications for product details.
Buy SS14HE with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SS14HE with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SS14HE |
|---|---|
| Manufacturer | onsemi |
| Description | 1.0 A, 40 V, Surface Mount Schottky Barrier Rectifiers |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.148 | $0.133 | $0.12 | $0.118 | ||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 550mV @ 1A |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 40V |
| Supplier Device Package: | SOD-323HE |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | Automotive, AEC-Q101 |
| Reverse Recovery Time (trr): | 5.6ns |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 2-SMD, Flat Lead |
| Other Names: | SS14HETR |
| Operating Temperature - Junction: | -55°C ~ 150°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Diode Type: | Schottky |
| Detailed Description: | Diode Schottky 40V 1A Surface Mount SOD-323HE |
| Current - Reverse Leakage @ Vr: | 50µA @ 40V |
| Current - Average Rectified (Io): | 1A |
| Capacitance @ Vr, F: | 55pF @ 4V, 1MHz |
| Email: | info@cjjhk.com |
Introduce
We can supply SS14HE, use the request quote form to request SS14HE pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SS14HE.The price and lead time for SS14HE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SS14HE.We look forward to working with you to establish long-term relations of cooperation
